Only vehicles with sound generator: Open catch -1-, unclip fuel lines -2- and loosen bolt -3- on activated charcoal filter. Place charge air pipe to one side.
–

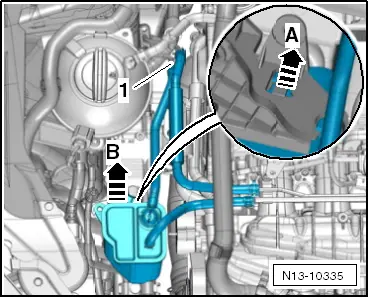

Pull off breather line -1-, release activated charcoal filter -A- and remove upwards -B-. Lay activated charcoal filter to side.
Note
Place a cloth underneath bracket for ancillaries to catch any escaping oil.
–
Separate electrical connector -4- on oil pressure switch -F22-.
