Removing and installing oil pressure switchF22 > < Assembly overview - oil filter, engine oil cooler

Golf Mk6

Removing and installing engine oil cooler
Removing and installing engine oil cooler
Special tools and workshop equipment required

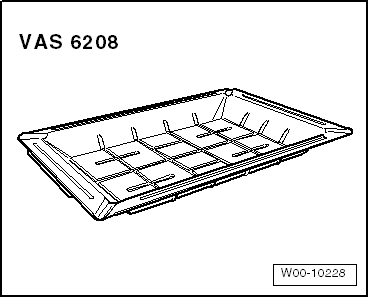

t  Drip tray for workshop hoist -VAS 6208-
Removing
  WARNING
When the engine is warm, the cooling system is under pressure.
Hot steam/hot coolant can escape - risk of scalding.
Cover filler cap on expansion tank with a cloth and open carefully to dissipate pressure.
–  Drain coolant → Chapter.
–  Remove bracket for ancillaries → Chapter.
  W00-10228
–  Unscrew bolts -4 and 5- and remove engine oil cooler -3- together with seal -2-.
Installing
Installation is carried out in the reverse order. When installing, note the following:
l  Specified torques → Chapter „Assembly overview - oil filter, engine oil cooler“.
  Note
t  Renew gaskets and seals.
t  Secure all hose connections with the correct type of hose clips (same as original equipment) → ETKA (electronic parts catalogue).
  A17-10228
–  Install engine oil cooler -3- with new seal -2-.
–  Install bracket for ancillaries → Chapter.
–  Replenish coolant → Chapter.
  A17-10228
