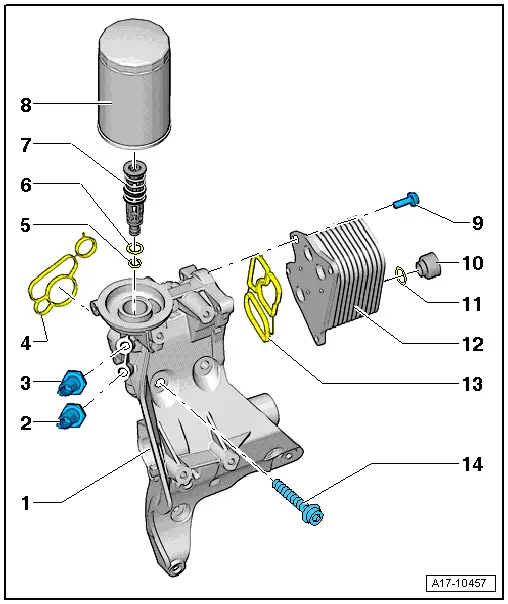

| Assembly overview - oil filter, engine oil cooler |
| 1 - | Bracket for ancillaries |
| q | Removing and installing → Chapter |
| 2 - | Oil pressure switch -F22- |
| q | Blue insulation |
| q | Removing and installing → Chapter |
| q | Check → Chapter. |
| q | 20 Nm |
| 3 - | Oil pressure switch for reduced oil pressure -F378- |
| q | Brown insulation |
| q | Removing and installing → Chapter |
| q | Check → Chapter. |
| q | 20 Nm |
| 4 - | Seal |
| q | Renew. |
| 5 - | O-ring |
| q | Not replacement part. Include in items supplied with valve unit |
| 6 - | O-ring |
| q | Not replacement part. Include in items supplied with valve unit |
| 7 - | Valve unit |
| q | With O-rings |
| 8 - | Oil filter |
| q | Remove and install with oil filter tool -3417-. |
| 9 - | Bolt |
| q | 15 Nm |
| 10 - | Connection |
| 11 - | Seal |
| q | Renew. |
| 12 - | Engine oil cooler |
| q | See note → Chapter. |
| q | Ensure clearance to adjacent components. |
| q | Removing and installing → Chapter |
| 13 - | Seal |
| q | Renew. |
| 14 - | Bolt |
| q | Tightening sequence → Fig.. |
