Jetta SportWagen L4-2.0L DSL Turbo (CBEA) (2009)

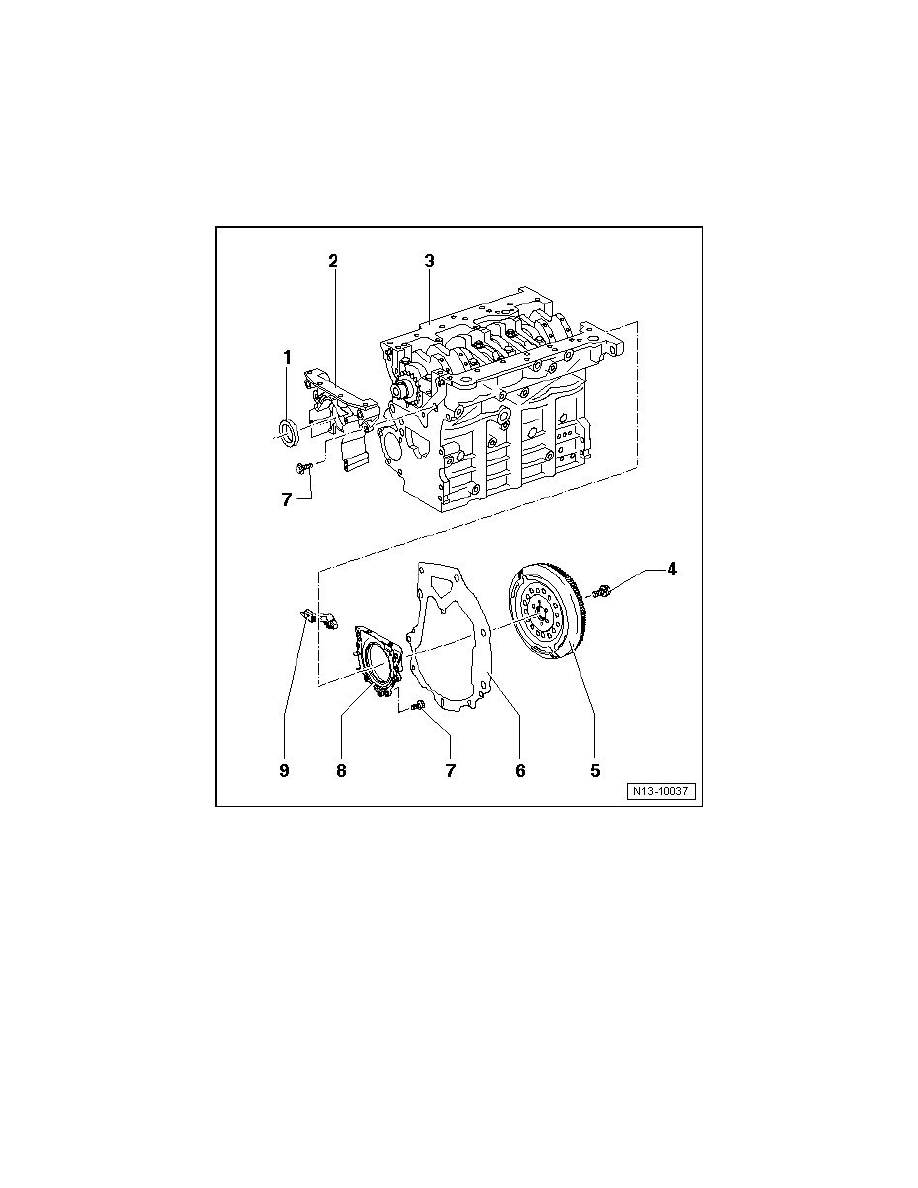

‹› Piston and connecting rod, refer to --> [ Pistons and Connecting Rod Assembly Overview ] See: Cylinder Block Assembly/Piston/Service and
Repair.
‹› Crankshaft, refer to --> [ Crankshaft Dimensions ] See: Cylinder Block Assembly/Crankshaft/Specifications.
4
60 Nm plus an additional 1/4 turn (90°)
‹› Replace
5
Flywheel
‹› Secure flywheel with counterhold tool (3067) to loosen and tighten the bolts
6
Intermediate Plate
‹› Must be located on dowel sleeves
‹› Do not damage or bend when doing assembly work
7
15 Nm
8
Sealing Flange with Seal
‹› With the engine speed sensor (G28) sensor wheel
‹› Only replaced as complete unit
‹› Do not additionally oil or grease sealing lip of oil seal
‹› Before installing, remove oil remains from crankshaft journal with a clean cloth
‹› Use support sleeve provided to install
‹› Removing and installing, refer to --> [ Crankshaft Sealing Flange, Flywheel Side ] See: Cylinder Block Assembly/Crankshaft Seal
Retainer/Service and Repair.
9
Engine speed sensor (G28), 5 Nm
‹› Removing and installing, refer to --> [ Engine Speed Sensor ] See: Powertrain Management/Computers and Control Systems/Engine Speed
Sensor/Service and Repair.
