"CD player"R89„2 Din Clarion“ - occupation of connectors
"CD player" -R89-„2 Din Clarion“ - occupation of connectors

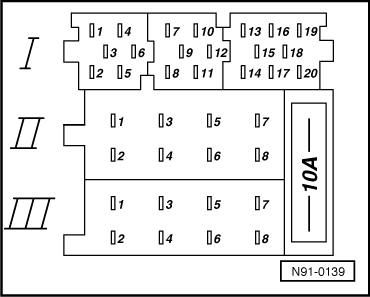

Multiple connector I, 20-pin connector -T20-
1 - Not used
2 - Not used
3 - Not used
4 - Not used
5 - Not used
6 - Not used
7 - Telephone, positive (+)
8 - Not used
9 - Not used
10 - Not used
11 - Remote control, REM
12 - Telephone, negative (-)
13 - Not used
14 - Not used
15 - Not used
16 - Not used
17 - Not used
18 - Not used
19 - Not used
20 - Not used
  N91-0139

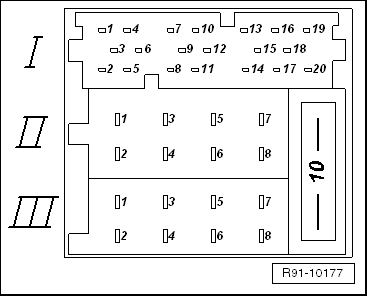

Multiple connector II, 8-pin connector -T8-
1 - Rear speaker, right side, positive
2 - Rear speaker, right side, negative
3 - Front speaker, right side, positive
4 - Front speaker, right side, negative
5 - Front speaker, left side, positive
6 - Front speaker, left side, negative
7 - Rear speaker, left side, positive
8 - Rear speaker, left side, negative
  R91-10177
Multiple connector III, 8-pin connector -T8-
1 - Not used
2 - Mute
3 - Self-diagnosis/cable K
4 - Connection for on/off operations controlled by the ignition key (contact S)
5 - Battery (SAFE)
6 - Lighting (terminal 58b)
7 - Battery, positive (terminal 30)
8 - Battery, negative (terminal 31)
  N91-0139
