BodyAssembly overview - bulkhead

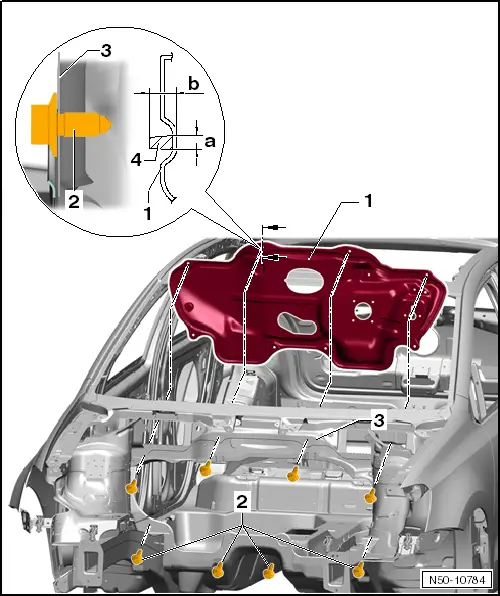

| Assembly overview - bulkhead |
Note| The bulkhead -1- is bolted and also bonded in place with PUR adhesive sealant -3-. |
| 1 - | Bulkhead |
| q | Removing: |
| – | Components that are fastened to the bulkhead must be detached. |
| – | After removing bolts -2-, cut through adhesive bead -3- using workshop equipment. |
| 2 - | Bolt |
| q | Qty. 10. |
| q | Specified torque: 25 Nm |
| 3 - | Body flange |
| 4 - | PUR adhesive sealant |
| q | DH 009 100 03. |
| q | Bead cross section: width = 8 mm; height = 10 mm. |
| q | Minimum curing period → Chapter. |
