Polo Mk5

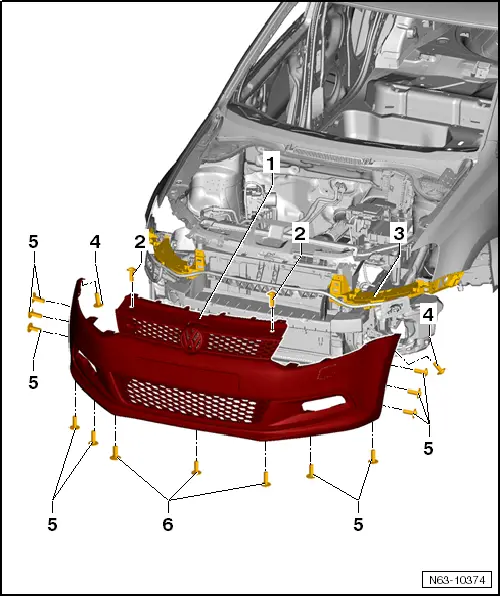

| Assembly overview - front bumper cover, Polo »GTI« |
| 1 - | Front bumper cover |
| q | Material PP/EPDM. |
| q | Removing → Chapter |
| q | Installing → Chapter. |
| 2 - | Bolt |
| q | Qty. 2. |
| q | Specified torque: 2 Nm |
| q | Bolted to lock carrier. |
| 3 - | Guide |
| q | Left and right. |
| 4 - | Bolt |
| q | Left and right. |
| q | Points upwards. |
| q | Specified torque: 2 Nm |
| 5 - | Bolt |
| q | Qty. 5 on each side. |
| q | Specified torque: 2 Nm |
| q | Bolted to wheel housing liner. |
| 6 - | Bolt |
| q | Qty. 3. |
| q | Specified torque: 2 Nm |
| q | Bolted to lock carrier. |
