Removing and installing mounting for drawer
Removing and installing mounting for drawer
  Note
Removal and installation is described for the left seat. Apply the same instructions for removal and installation of the right seat as appropriate.
Removing
–  Remove front seat → Chapter.

–  On vehicles with drawer, bend retaining tab -1- outwards using wedge -T10383- and pull out drawer -2- from mounting.
  N72-10522

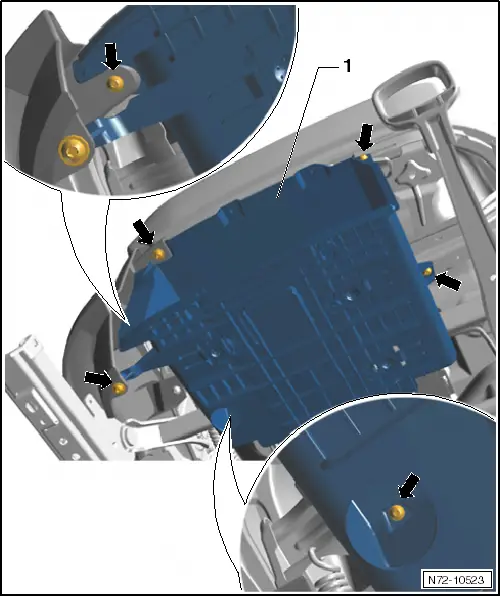

–  Remove 6 bolts -arrows-.
Specified torque: bolts = 2 Nm.
–  Remove support for drawer -2-.

Installing
–  Install in reverse order of removal.
