Overview of loudspeaker system

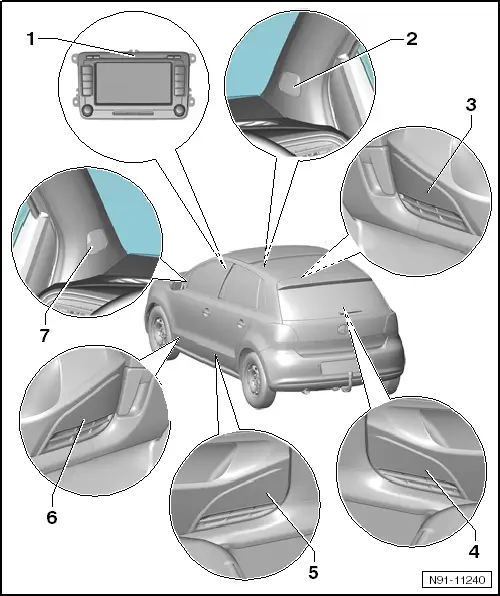

Overview of loudspeaker system – Volkswagen Polo Mk5
1 - Radio -R- or control unit with display for radio and navigation system -J503-
2 - Front right treble loudspeaker -R22-
q   Installed in right A-pillar trim
q   Removing and installing → Chapter.
3 - Bass loudspeaker, front right -R23-
q   Installed in right door
q   Removing and installing → Chapter.
4 - Bass loudspeaker, rear right -R17-
q   Installed in rear right side trim panel of 2-door vehicle
q   Installed in rear right door trim of 4-door vehicle
q   Removing and installing → Chapter.
5 - Bass loudspeaker, rear left -R15-
q   Installed in rear right side trim panel of 2-door vehicle
q   Installed in rear left door trim of 4-door vehicle
q   Removing and installing → Chapter.
6 - Bass loudspeaker, front left -R21-
q   Installed in left door
q   Removing and installing → Chapter.
7 - Front left treble loudspeaker -R20-
q   Installed in left A-pillar trim
q   Removing and installing → Chapter.
