R32 4Motion V6-3.2L (CBRA) (2008)
Hood Hinge: Service and Repair

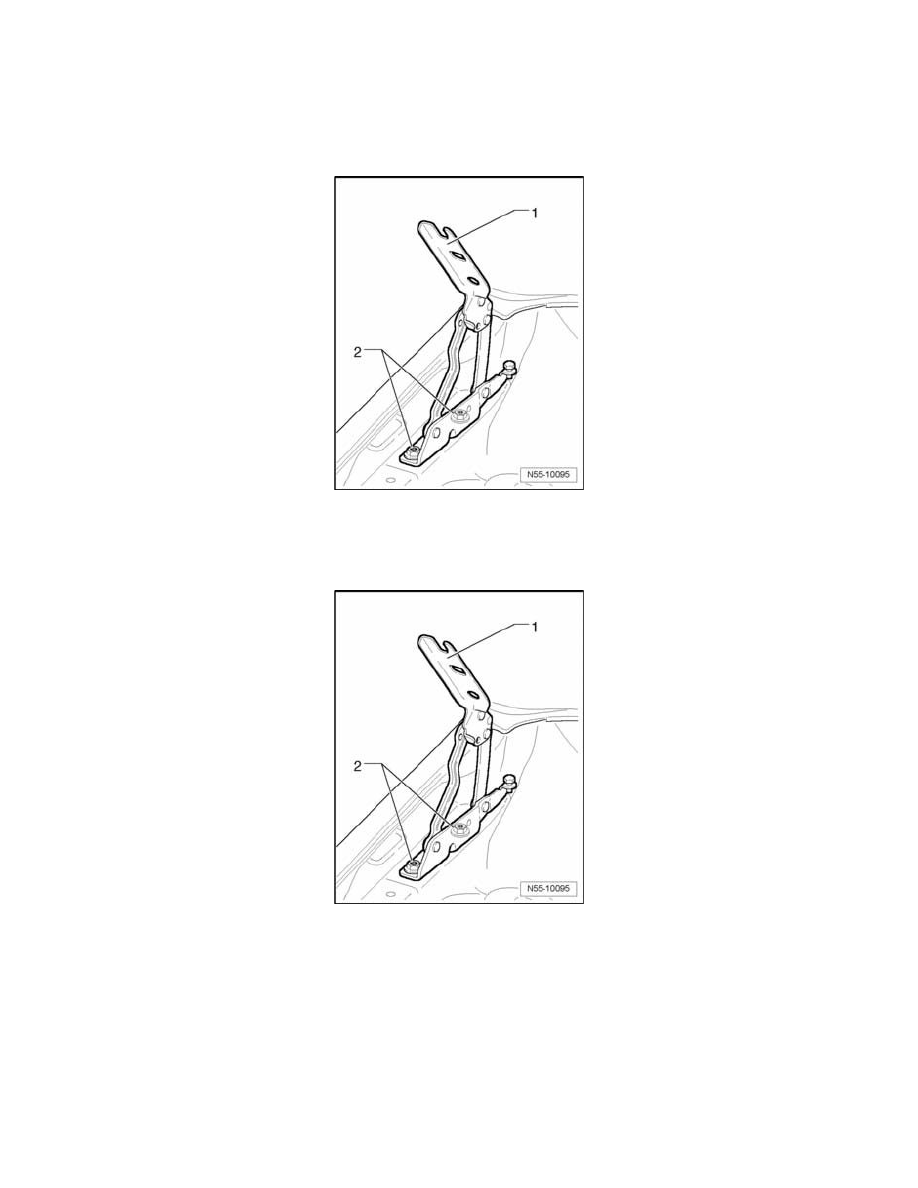

Hood Hinge
NOTE: Removing and installing is described only for the left hood hinge. Removing and installing right hood hinge is similar
Removing
-
Hood
-
Remove screws - 2 - and remove hood hinge - 1 -.
Installing
-
Assemble the hood hinge - 1 -.
-
Tightening specification for bolts - 2 - : 22 Nm
-
Hood
