R32 4Motion V6-3.2L (CBRA) (2008)
12 - Input shaft
^
For oil pump drive
13 - Oil pump
14 - 8 Nm
^
Insert using locking fluid D 000 600 A2
15 - 23 Nm
16 - Oil drain plug, 30 Nm
^
Replace if washer is permanent
17 - Oil pan
18 - Oil level thermal sensor G266
19 - 10 Nm
20 - 23 Nm
21 - Oil filter housing
22 - Seal
^
Replace
^
Oil before assembling
23 - 10 Nm
^
Insert using locking fluid D 000 600 A2
24 - Baffle plate
25 - 8 Nm
^
Replace
26 - Seal
^
Replace if damaged
Oil Spray Jet, Removing and Installing
Special tools, testers and auxiliary items required
^
Drift 4 mm dia.
^
Drift 6 mm dia.
Note:
^
Oil spray nozzles are built into the crankshaft bearings 2 to 7.
Removing
-
Using a 4 mm dia. drift, press the oil spray jet toward the engine bearing and out.
Installing
-

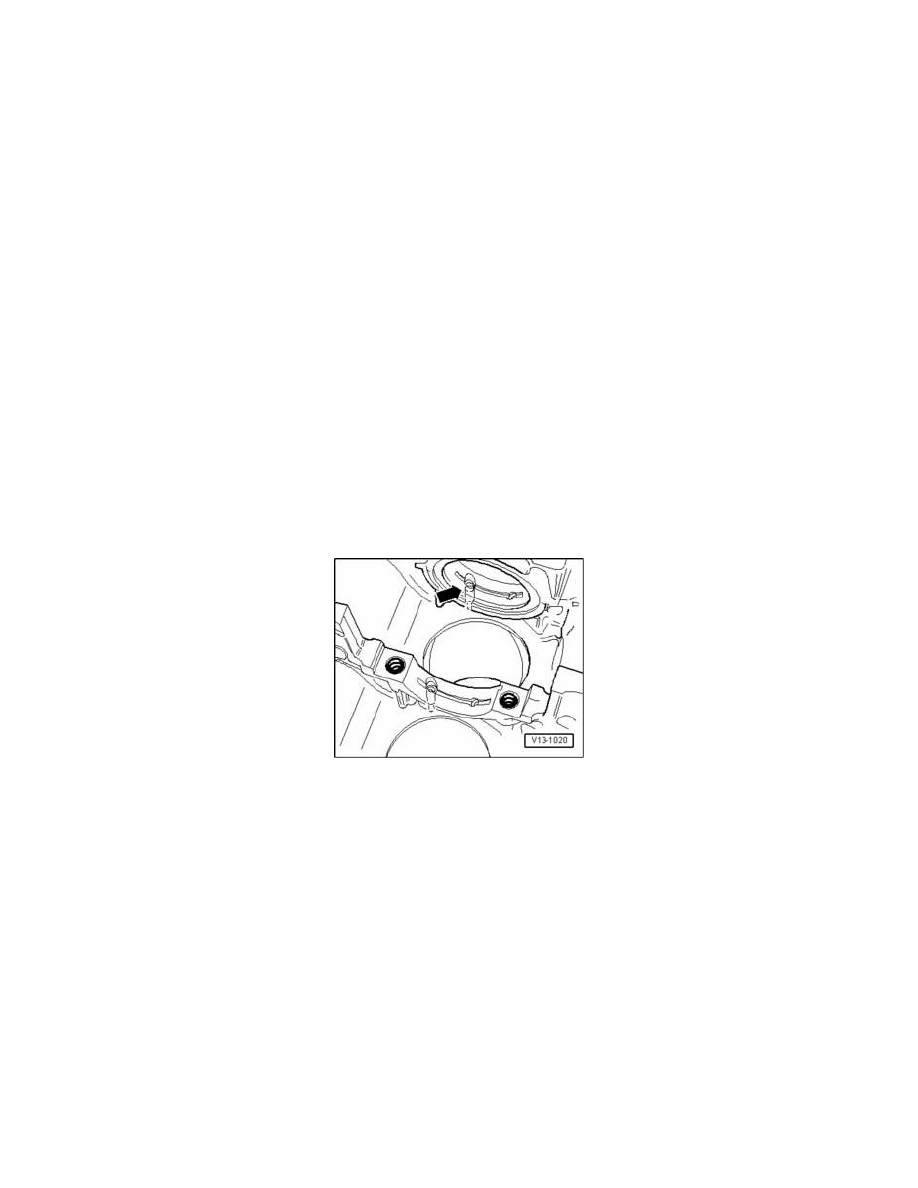

To install, press oil spray jet - arrow - in by hand using a 6 mm dia. drift.
