R32 4Motion V6-3.2L (CBRA) (2008)
- 2 - Camshaft adjustment valve 1 (exhaust) N318.
-
Clean sealing surface on cover piece as well as on cylinder head.
-
Lubricate oil channel seal O-ring and insert in cover.
-
Insert sealing ring in cover.
-

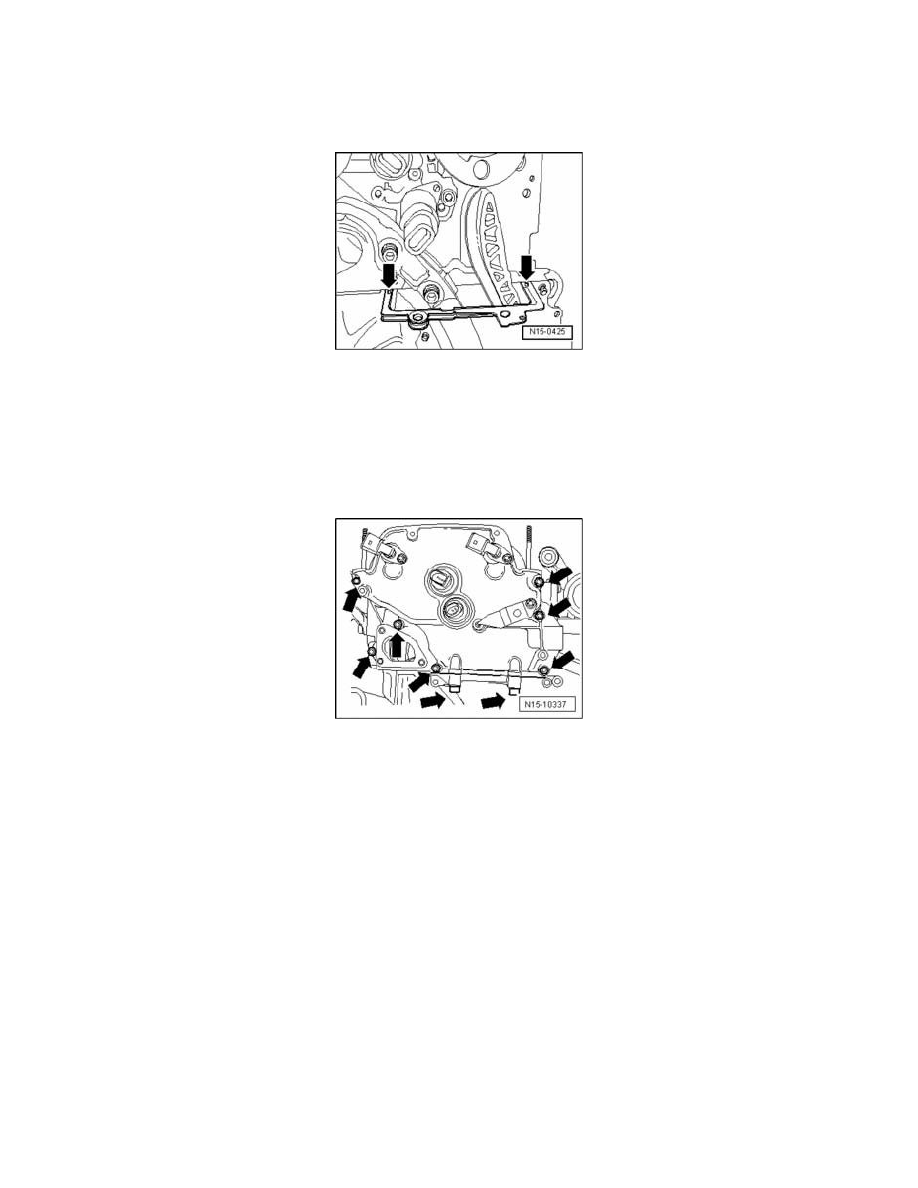

Clean old sealing compound from the 3 mm holes in the cylinder head gasket - arrows -.
-
Fill the 3 mm holes in the cylinder head gasket using sealant D 176 501 and coat the sealing surfaces on the timing chain cover using sealant D
176 501.
Note:
^
With the cylinder head installed only half of the holes in the cylinder head gasket are visible.
-
Install timing chain cover as quickly as possible.
-
First install all bolts - arrows - and tighten lightly.
-
Then tighten the M8 bolts to 23 Nm and tighten the M6 bolts to 8 Nm.
-
Install the camshaft roller chain tensioner and tighten it to 40 Nm.
-
Install cylinder head cover.
The rest of the assembly is basically a reverse of the disassembling sequence.
