R32 4Motion V6-3.2L (CBRA) (2008)
Relays and Modules
Relays and Modules - Power and Ground Distribution
Relay Box / Application and ID / Overview of Relay Carrier
Page 245
Page 1

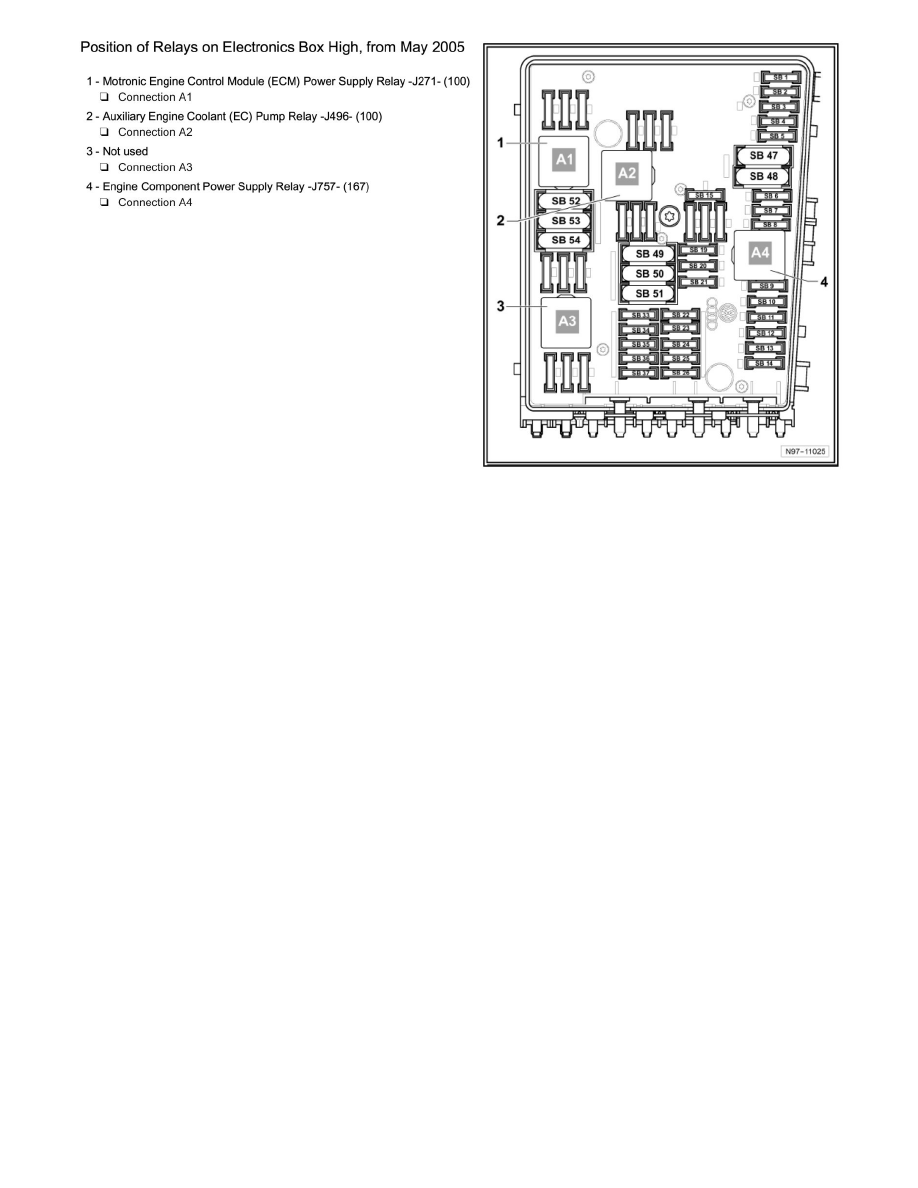

Position Of Relays On Electronics Box High
Relays and Modules
Relays and Modules - Power and Ground Distribution
Relay Box / Application and ID / Overview of Relay Carrier
Page 245
