R32 4Motion V6-3.2L (CBRA) (2008)
-

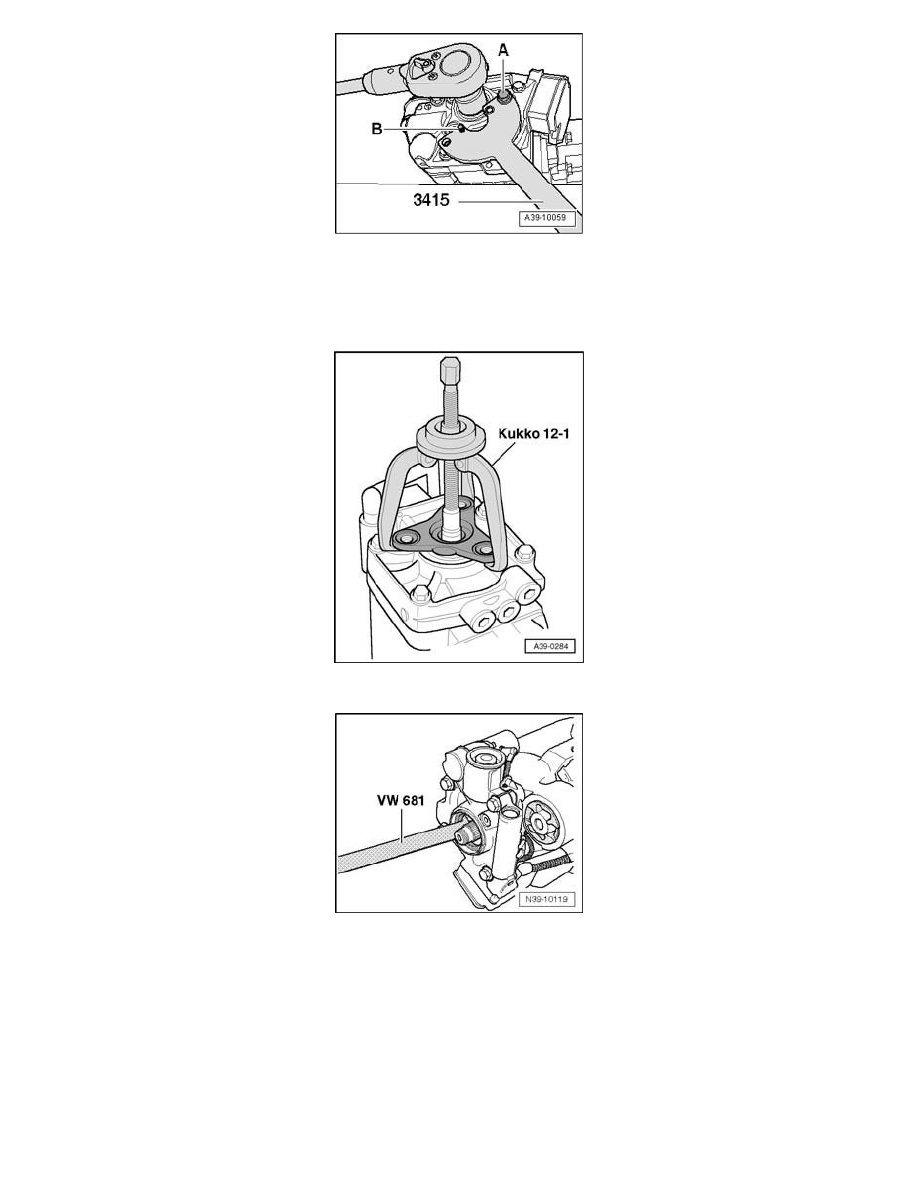

Remove nut from the flange.
A - Hex bolts M10 x 25
B - Hex socket bolt M8 x 15 (installed in the handle-hold dr.shaft flange 3145 from the rear side)
-
Remove the flange. Use a slide hammer Kukko 12/1 if it is difficult.
-
Remove seal using extractor lever VW 681.
Installing
-
Before installing, lightly coat new seal on outside circumference and between sealing lips with high performance Haldex clutch oil.
