R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1020002.png)
Ensure no parts fall below when removing control module.
-

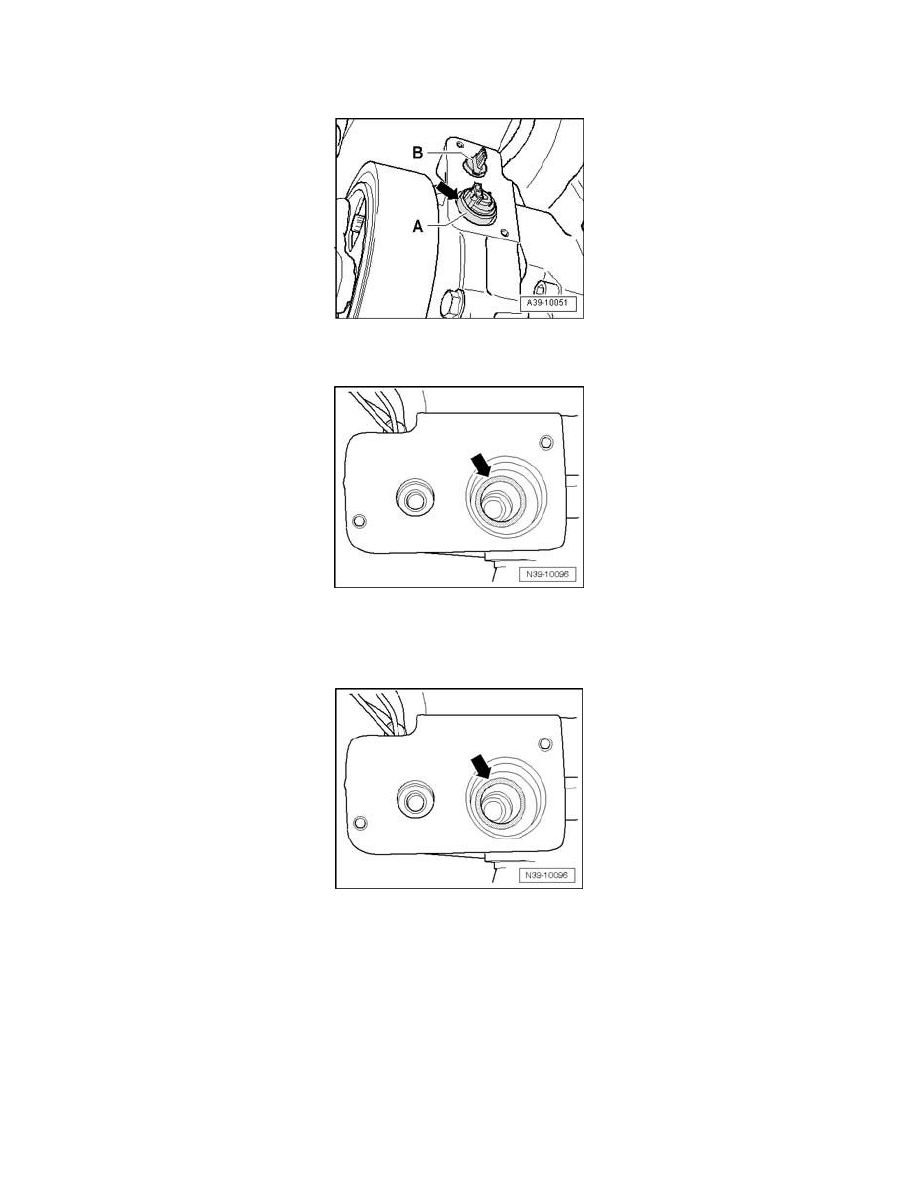

Carefully remove control module -A-.
-
Carefully grasp Haldex clutch control valve N373 -A- with pliers on metal housing -arrow- and remove.
-
Remove pressure sensor -B-.
-
Remove Haldex clutch control valve N373 seal -arrow- from housing.
Installing
Install in reverse order, paying attention to the following:
-
Coat the new Haldex clutch control valve N373 seal -arrow- with high performance Haldex clutch oil and insert it in the housing.
