R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1022002.png)
^
Can be reused when replacing control module
10 - Plate spring
^
In installation position, marking -arrow- must be located at top and face toward pressure sensor.

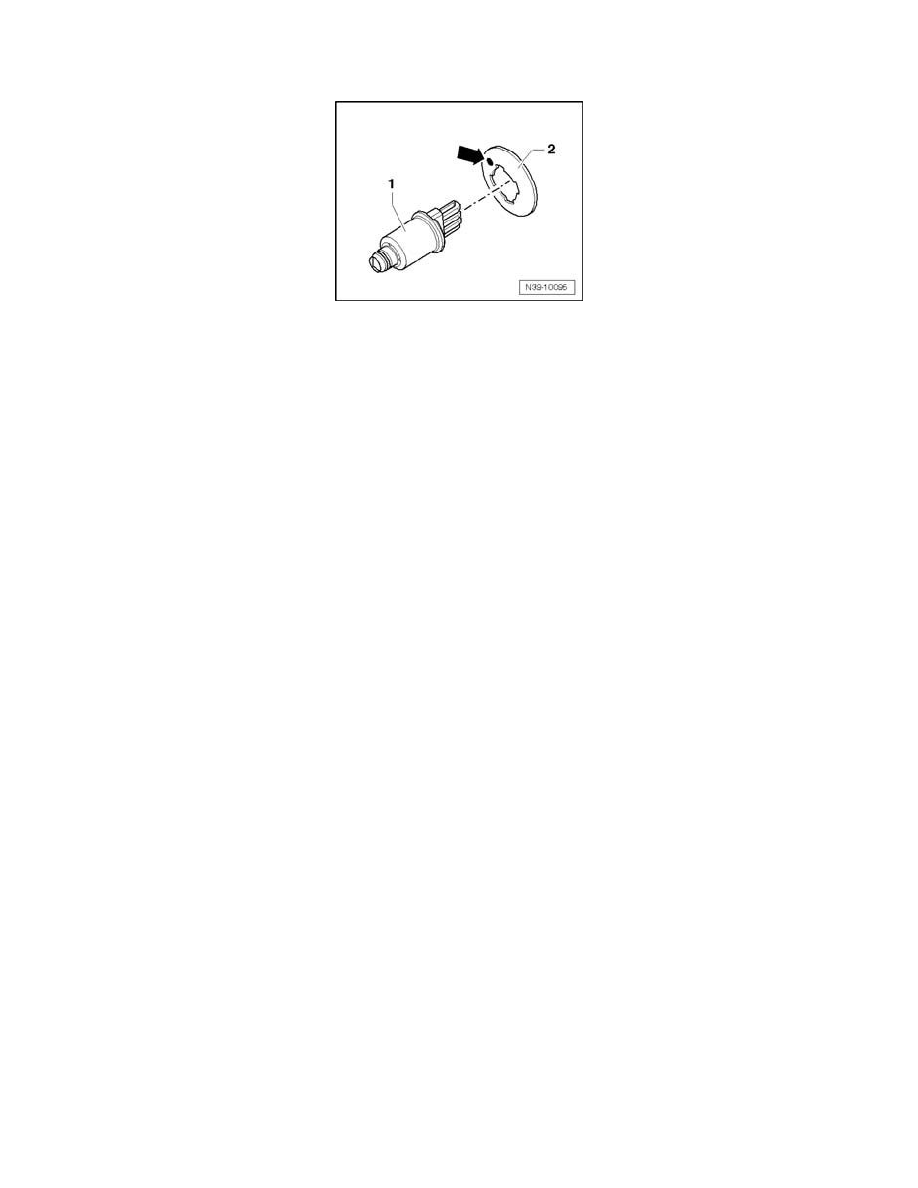

Plate Spring Location
^
The marking -arrow- is on the convex side of the plate spring -2-.
^
The convex side with the marking -arrow- faces toward the pressure sensor -1-.
^
Marking -arrow- faces upward in installation position.
