Touareg 2 V6-3.6L (BHK) (2008)

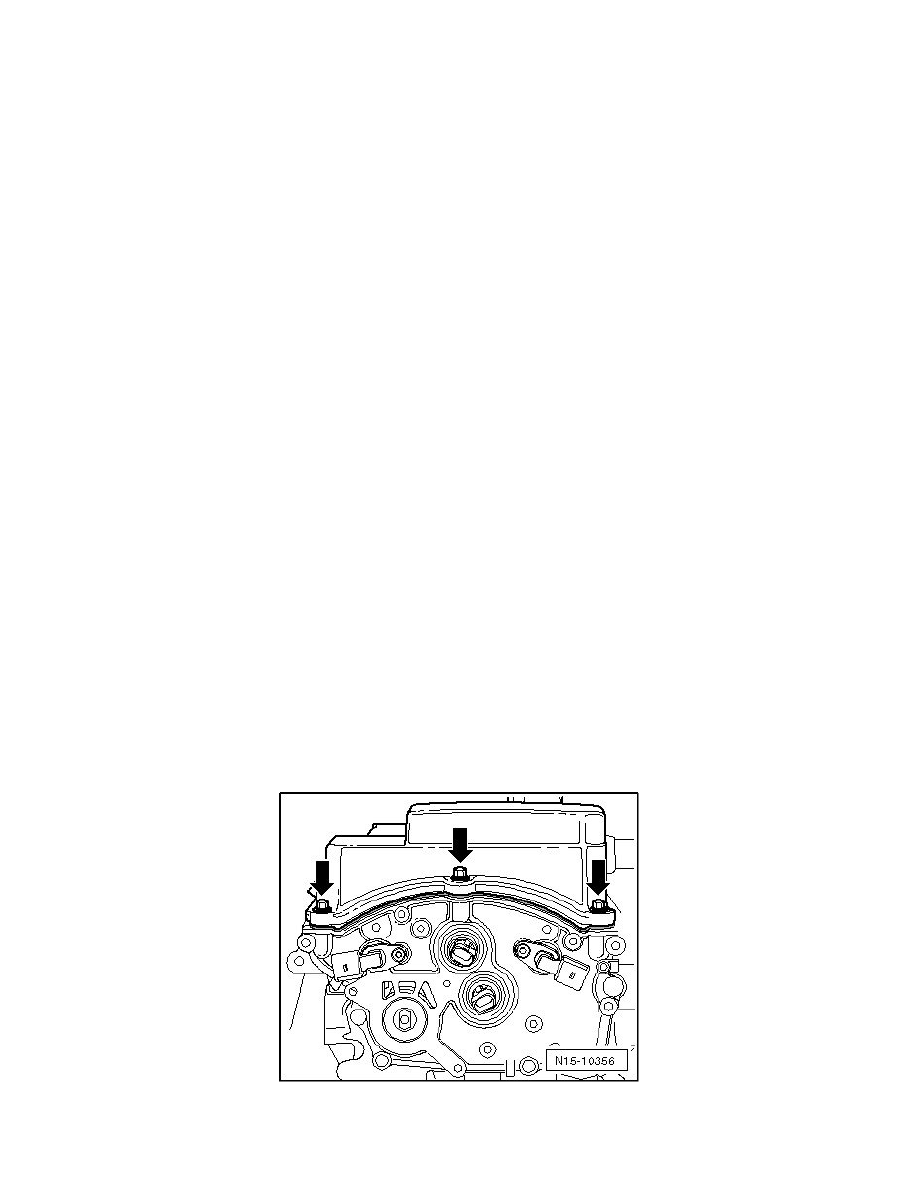

‹› Bolts - A - are not on vehicles with mechanical vacuum pump.
CAUTION!
‹› Carefully cover lower chain compartment so no parts can fall in.
‹› Do not completely remove camshaft adjustment valve bolts so that valve is not tilted when removed.
-
Loosen camshaft adjustment valve bolts approximately 3 mm (5 turns) - arrows - using socket wrench (T10072).
-
Pull camshaft adjustment valve out of seal seat in control housing against loosened bolts.
-
Completely remove bolts and remove camshaft adjustment valve from control housing.
Installing
CAUTION!
‹› The valve seat in the control housing must not be scored or scratched.
‹› The camshaft adjustment valves and control housing must be free of dust and contamination.
‹› The camshaft adjustment valves must not be subjected to knocks or impacts.
‹› Only remove new camshaft adjustment valve from packaging right before installation.
‹› Camshaft adjustment valves must not be pulled into valve seat by securing bolts. Only press them in by hand.
-
Coat sealing ring with clean engine oil.
