Removing and installing centre console insert

Special tools and workshop equipment required

t	Removing wedge -3409-

Removing

–	Switch off ignition.

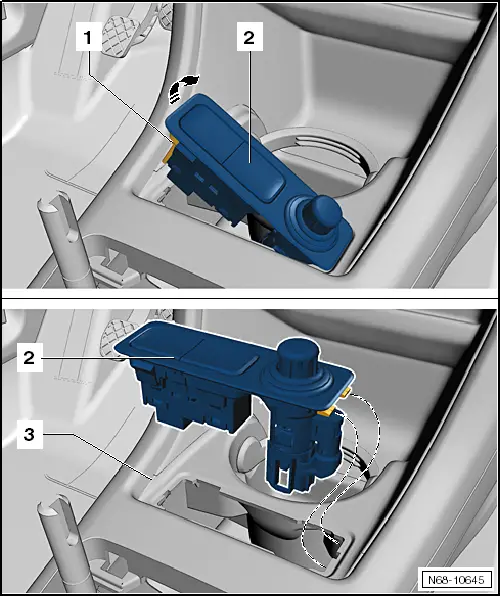

–	Release retainer tab -1- using removing wedge -3409-.

–	Remove insert -2- from centre console -3- as shown -arrow-.

–	Disconnect wiring harnesses and plug as you do so, depending on vehicle equipment level.

Installing

Note

Before installing, check all fasteners for damage and renew if necessary.

–	Install in reverse order of removal.

–	Insert side with retaining lugs first.
