Removing and installing lower steering column trim

Removing and installing lower steering column trim
Removing

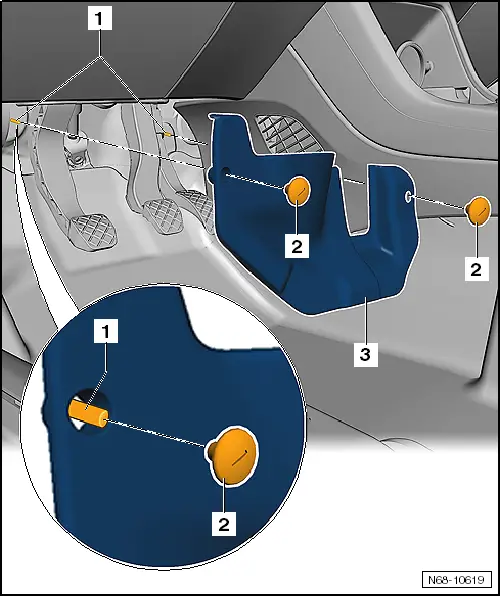

–  Loosen and remove clip nuts -2- from studs -1-.
–  Detach lower steering column trim -3- from body.
–  Feed lower steering column trim -3- past pedals and remove.

Installing
–  Install in reverse order of removal.
