C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Note! Damaged foam filling must be replaced. This to guarantee function. This also applies if there are cracks in the backrest or seat frame.
Installation
Installing heater pads
Caution! The heater pad must be correctly positioned so that when the half moon clips are secured they are not too close to the heating loops or
the surface of the heater pad.

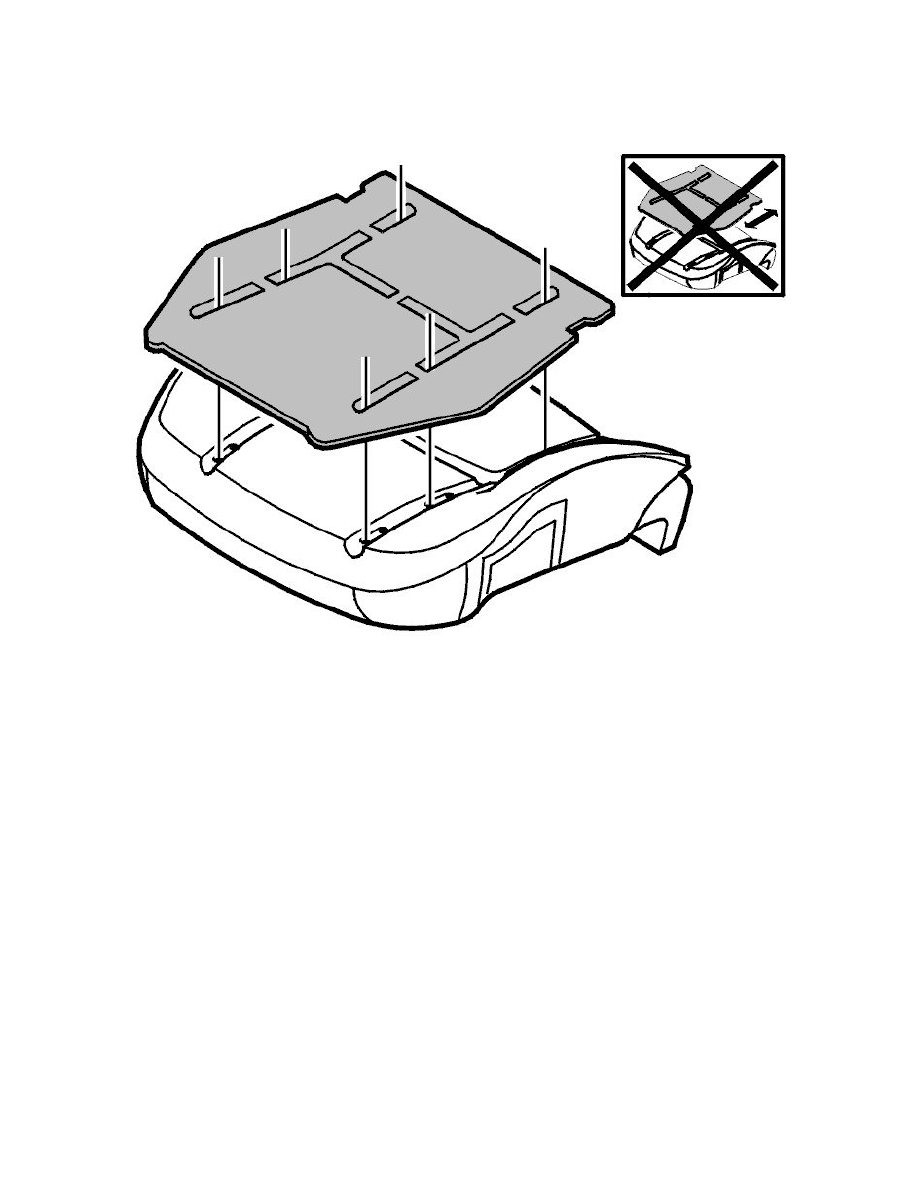

Position the heater pad in the correct position. Do not remove the backing from the adhesive surfaces.
Secure one half of the heater pad. Fold up the other half.
Pull the backing (or part of the backing) off the adhesive surface closest to the center of the section of the heater pad that is bent up.
Carefully bring the adhesive surface down onto the foam filling. Work with small sections at a time. Start from the center and work out towards the
edges.
Continue in the same way with the other adhesive surfaces.
