S40 T5 L5-2.5L Turbo VIN 68 B5254T3 (2006)

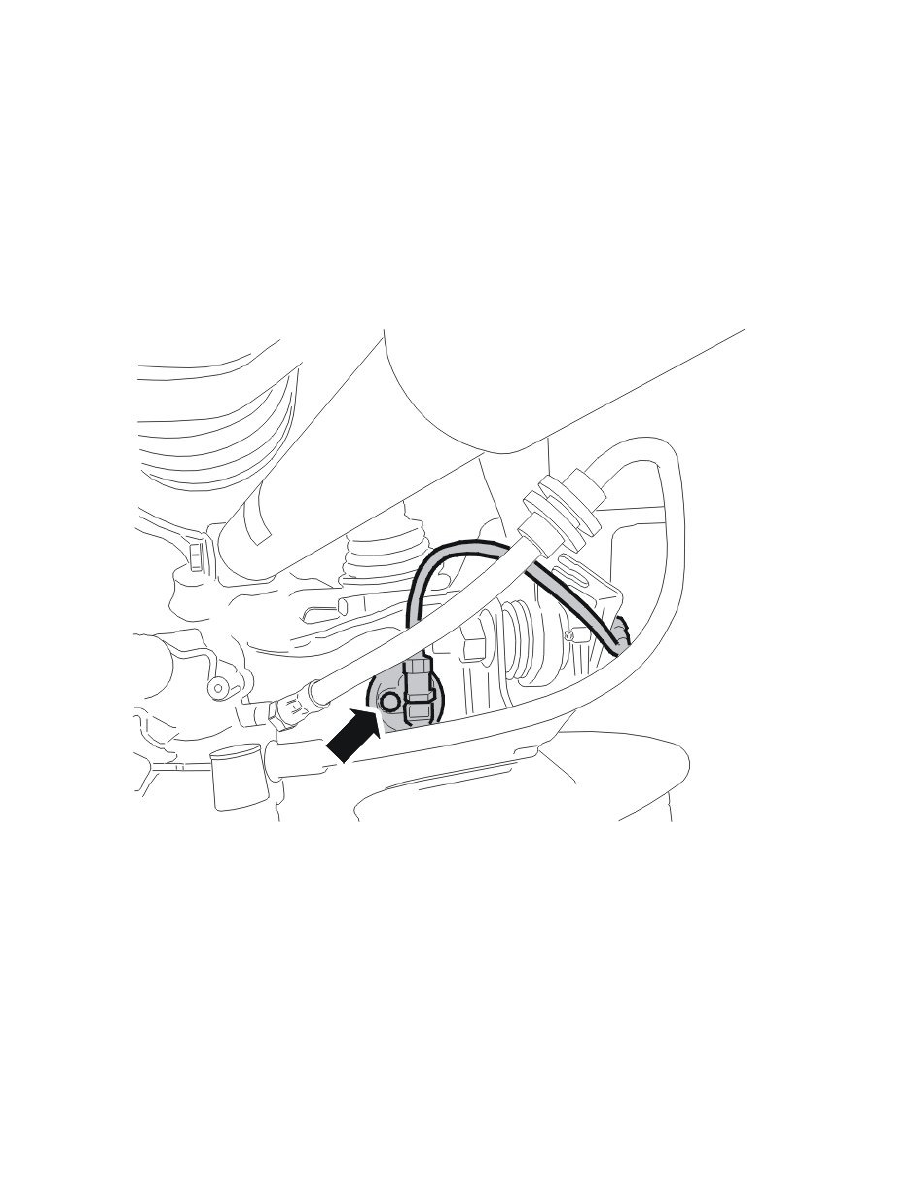

Connect the connector on the right-hand side.
Tightening the upper/lower control arm and tie rod
Install a transmission jack under the lateral link. Press up the lateral link to the normal position. For the correct value in the normal position, see: Normal
position See: Service and Repair.
Tighten on both sides:
-
- the 2 x screws for the upper and lower control arm. Tighten. See: Tightening torque. See: Steering/Specifications
-
the screw for the track rod, 1 pc. Tighten according to: Tightening torque. See: Steering/Specifications
Installing the anti-roll bar
Install the anti-roll bar. See: Stabilizer Bar/Service and Repair/Rear
Installing the propeller shaft
Install the anti-roll bar.
Installing the rear spring
Install the springs. See: Suspension Spring ( Coil / Leaf )/Service and Repair/Rear Suspension
Installing the shock absorber
