Windshield: Locations (page 5 of 7) – Acura CL V6-3.2L SOHC (2002)

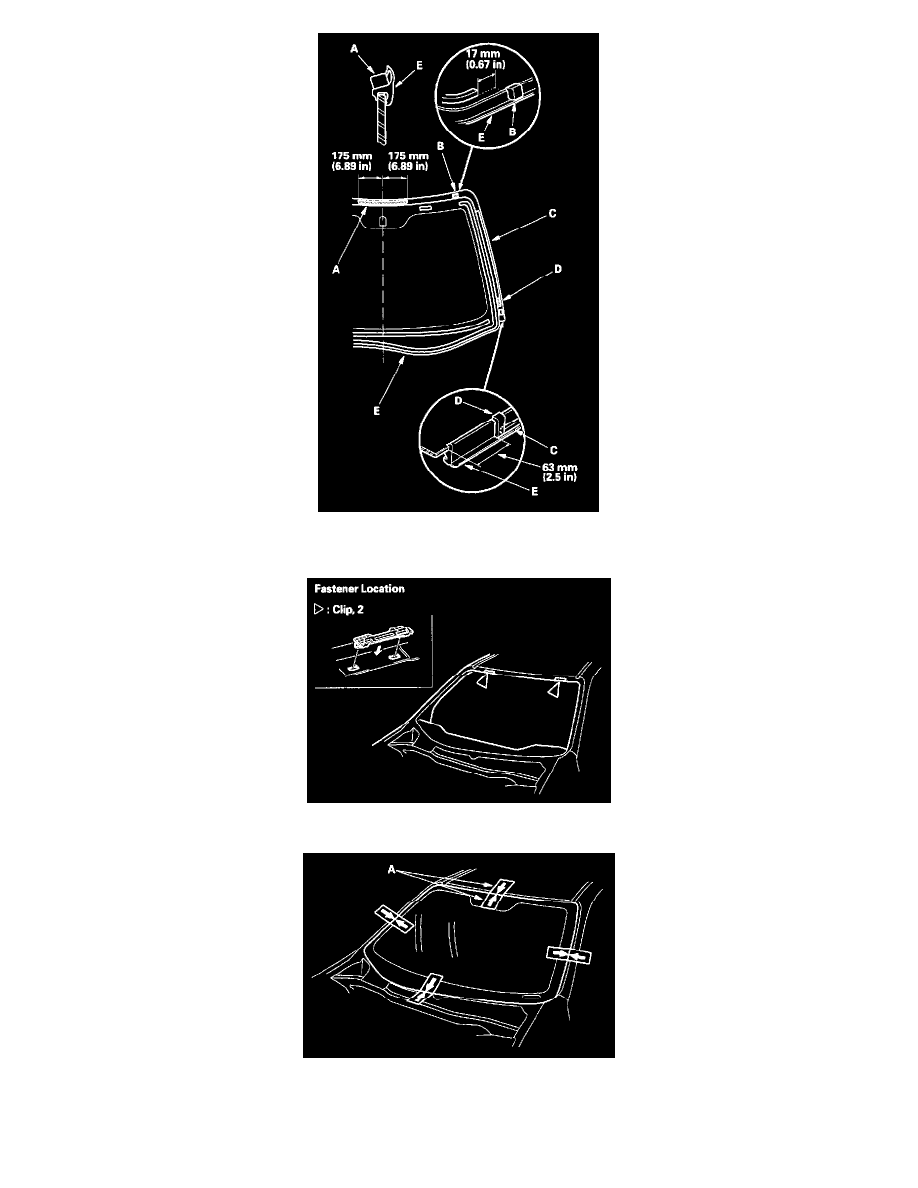

14. Glue the molding middle upper seal (A), molding upper seals (B), butyl tapes (DIABOND H13, or equivalent) (C) and molding side seals (D) to

the molding (E). Be careful not to touch the windshield where adhesive will be applied.

15. Install the clips to the body

16. Set the windshield in the opening, and center it. Make alignment marks (A) across the windshield and body with a grease pencil at the four points

shown. Be careful not to touch the windshield where adhesive will be applied.

17. Remove the windshield.
