145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

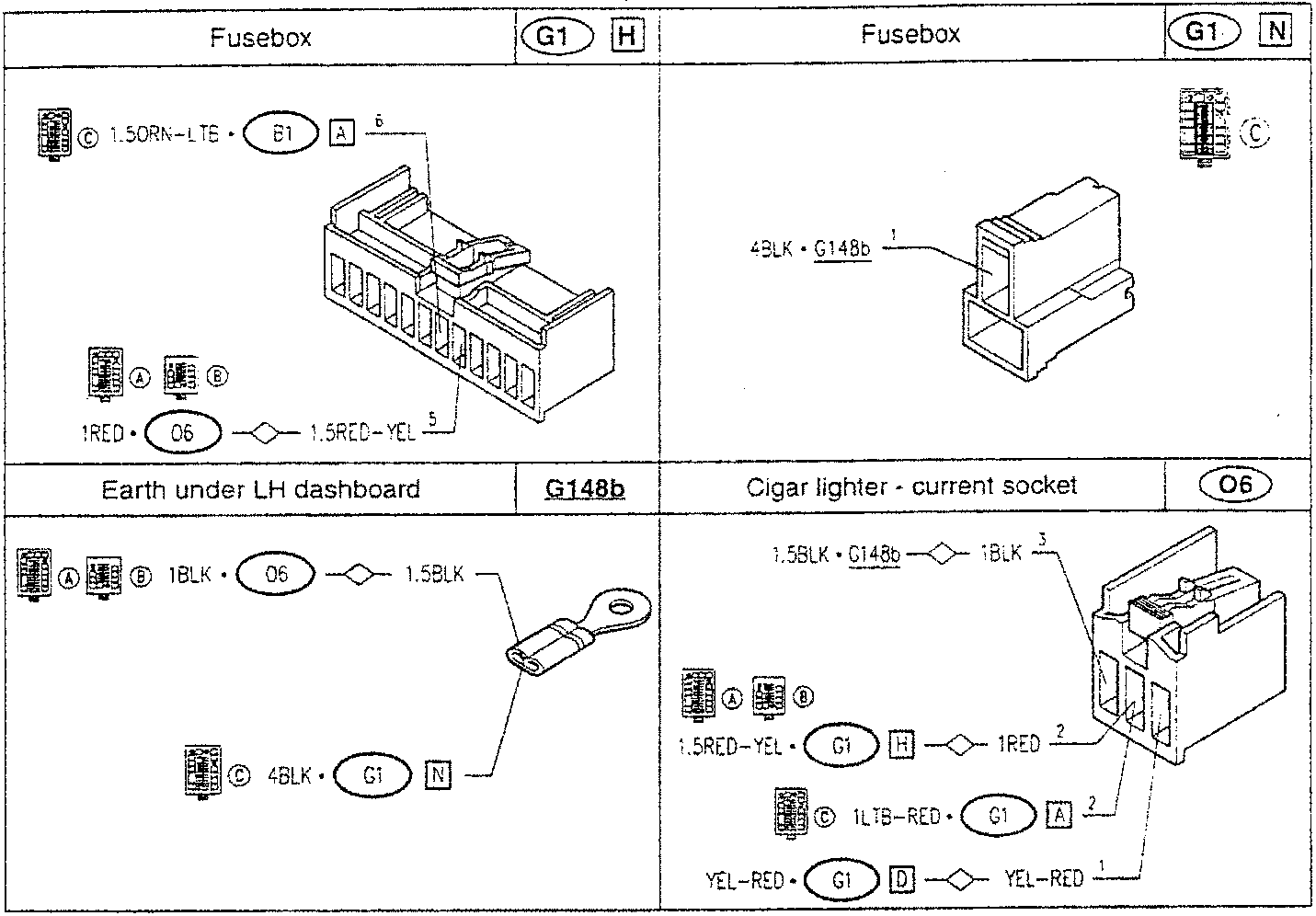

COMPONENTS AND CONNECTORS (cont.d)

FAULTFINDING TABLE

Failure	Component to be checked
E2 O6 (*)
Cigar lighter - current socket	●	●
Cigar lighter light		●

(*) If the thermal protection device for the current socket cuts in, it can be changed at least 5 times without the need to change the complete socket.

01 Diagnostics
