145 electrical system diagnosisComponents and connectors

COMPONENTS AND CONNECTORS

Fusebox	G1	Fusebox	G1	A
F2	1:RED • G56	F1	1YEL • G23	1YEL • G23
	1YEL • G23		1GRY • G21	WHT • G21

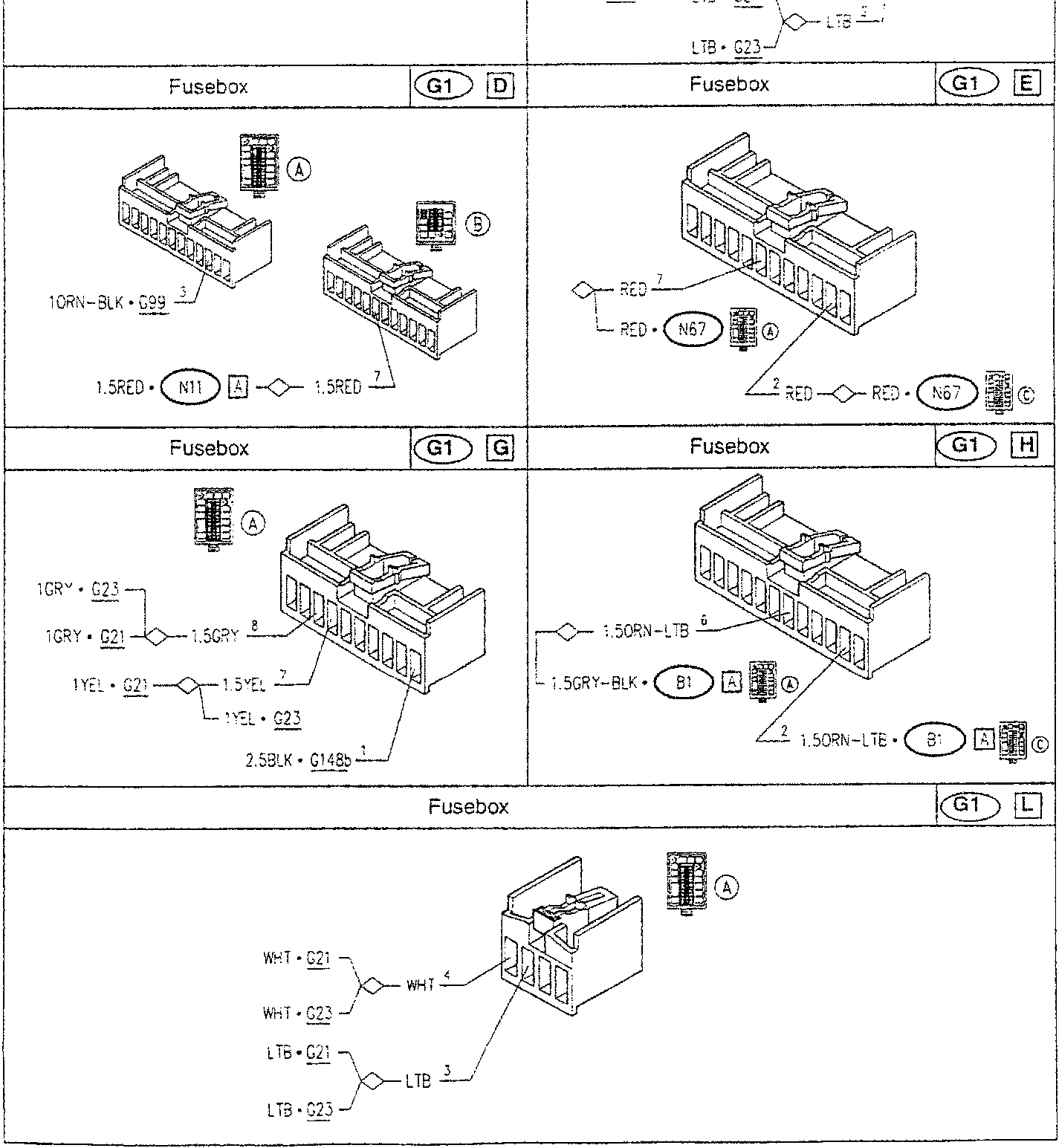

Fusebox	G1	D	Fusebox	G1	E
10RN-BLK • G99	1.5RED • N11	1.5RED	RED • N67	2 RED • RED • N67

Fusebox	G1	G	Fusebox	G1	H
1GRY • G23	1GRY • G21	1.5GRY	1.5RN-LTB	1.5GRY-BLK • B1	1.5RN-LTE • B1
1YEL • G21	1.5YEL	2.5BLK • G14Bb

Fusebox	G1	L
WHT • G21	WHT • G23	LTB • G21	LTB • G23
