145 electrical system diagnosisComponents and connectors

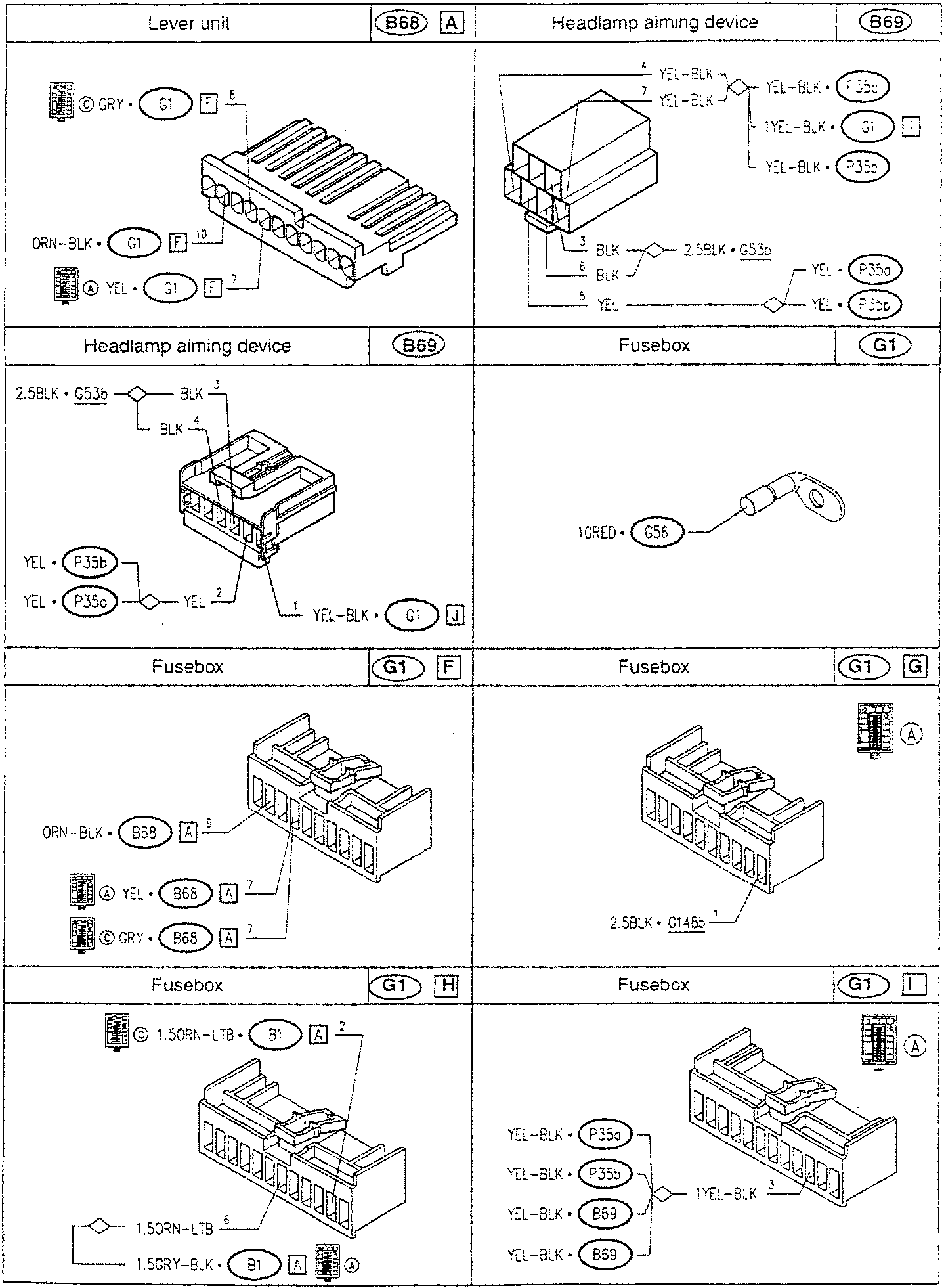

COMPONENTS AND CONNECTORS

F1 Lever unit B68 A Headlamp aiming device B69
Lever unit with wire connections labeled GRY, ORN-BLK, YEL, and numbered pins 7, 8, 10.
Headlamp aiming device with wire connections labeled YEL-BLK, 1YEL-BLK, BLK, YEL, and numbered pins 3, 4, 5, 6, 7.
Headlamp aiming device B69 Fusebox G1
Headlamp aiming device with wire connections labeled 2.5BLK, BLK, YEL, and numbered pins 1, 2, 3, 4.
Fusebox with wire connection labeled 10RED and G56.
Fusebox G1 F Fusebox G1 G
Fusebox with wire connections labeled ORN-BLK, YEL, GRY, and numbered pins 7, 9.
Fusebox with wire connection labeled 2.5BLK and G148b.
Fusebox G1 H Fusebox G1 I
Fusebox with wire connections labeled 1.5ORN-LTB, 1.5GRY-BLK, and numbered pins 2, 6.
Fusebox with wire connections labeled YEL-BLK, 1YEL-BLK, and numbered pins 3.

(*) from chassis no._
PA493000000008
