COMPONENTS AND CONNECTORS

Passenger compt. ceiling light F3 Luggage compt. light F5

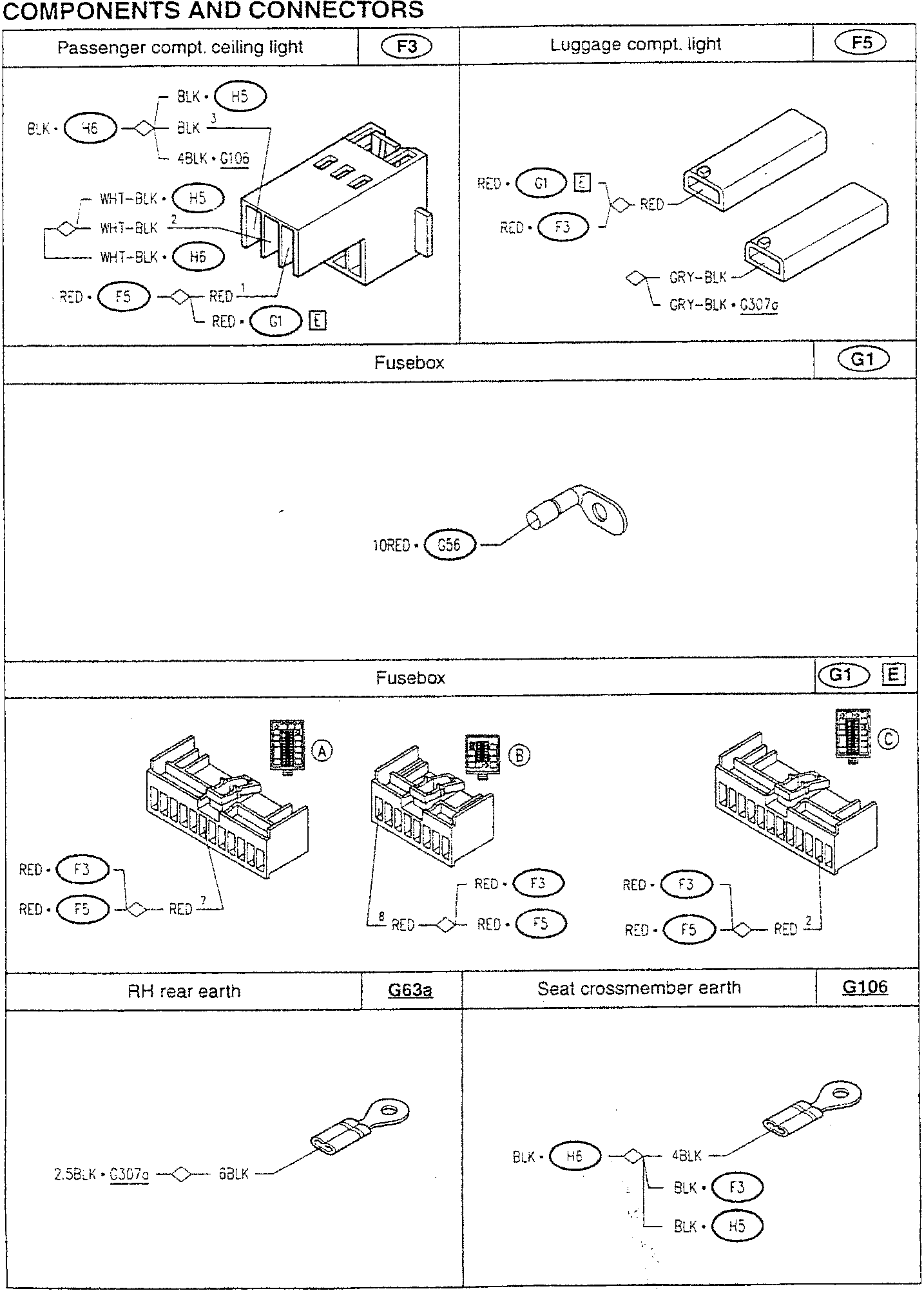

Passenger compartment ceiling light wiring diagram
Fusebox G1
Fusebox G1 E
RH rear earth G63a Seat crossmember earth G106
