Faultfinding table
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Lighting Controls and Indicators › Faultfinding table
145 electrical system diagnosisFaultfinding table
FAULTFINDING TABLE
NOTE: Firstly check that the side lights are working properly (see "Side Lights")
| Failure | Component to be checked | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| F5 | B68 (1) | F8a (2) | F8b (2) | O6 (2) | F10 (2) | B36 (1) | O4 (1) | I64 | C10 (3) | C16 (1) |
| All the control lighting | ● | ● | ||||||||
| Lever unit lighting | ● | |||||||||
| Instrument cluster lighting | ● | |||||||||
| Check Panel lighting | ● | ● | ||||||||
| Heating & ventilation panel lighting | ● | |||||||||
| Ashtray / cigar lighter lighting | ● | |||||||||
| Wing mirror control lighting | ● | |||||||||
| Radio lighting | ● | |||||||||
(1) In the event of a failure of the bulbs/leds change the whole component
(2) only change the bulbs with bulb holder
(3) it is possible to change the five light bulbs shown in the figure.

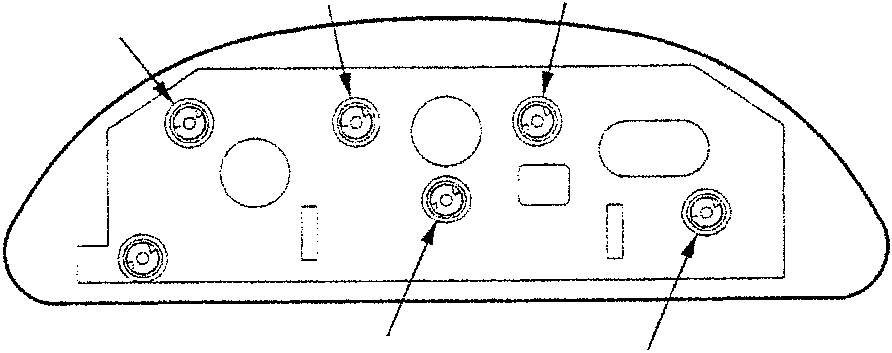

Up to M.Y. '98

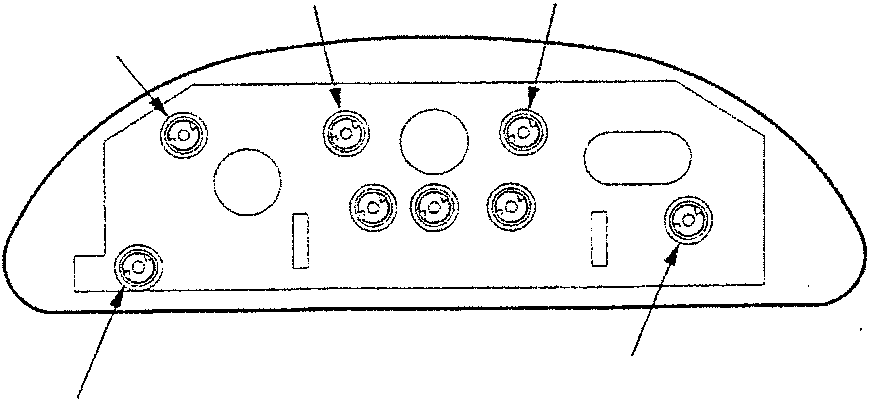

From M.Y. '99
