COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Luggage Compartment › COMPONENTS AND CONNECTORS (cont.d)

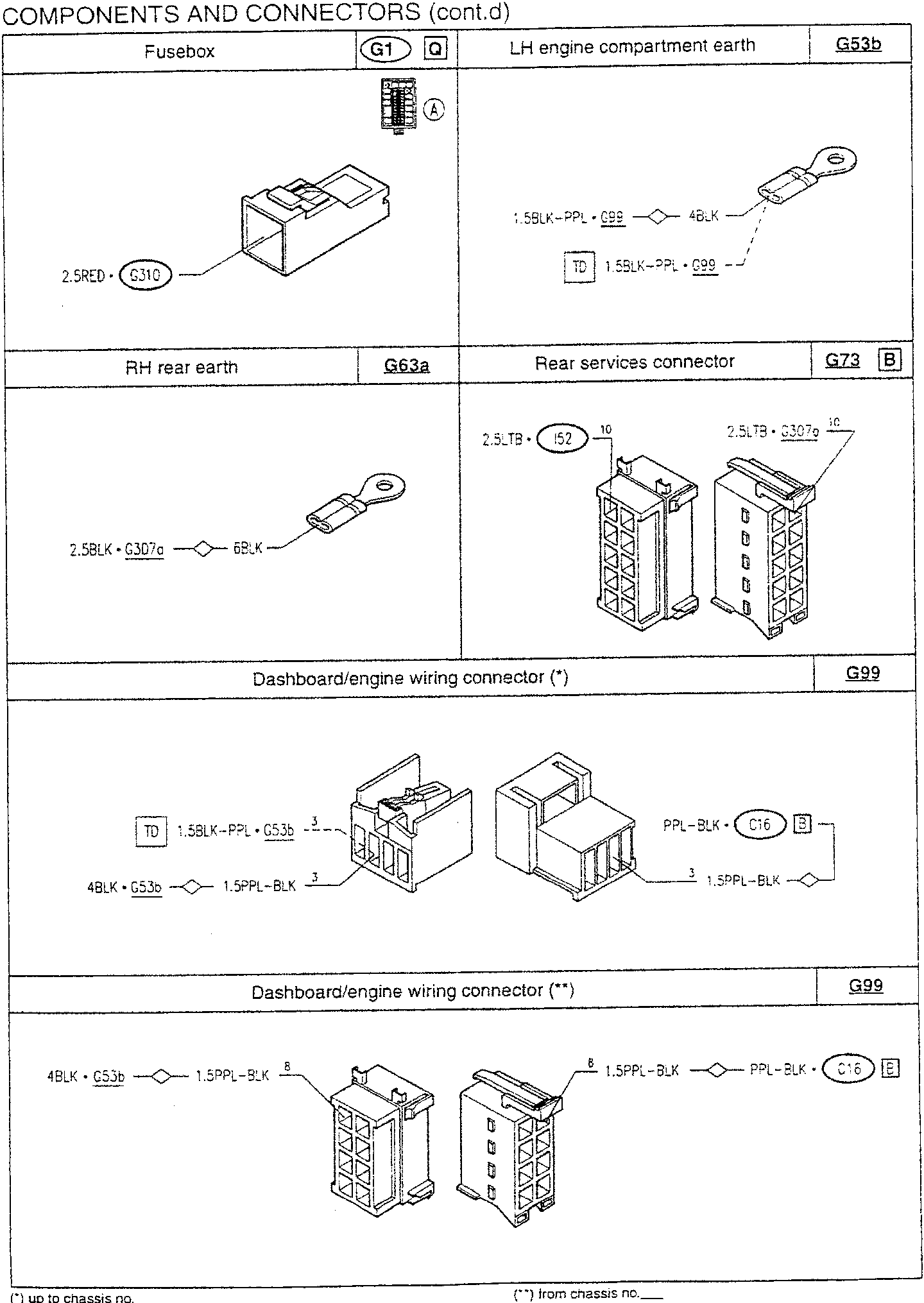

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

Fusebox	G1 Q	LH engine compartment earth	G53b
	A	1.5BLK-PPL • G99 — 4BLK TD 1.5BLK-PPL • G99 —	G53b

RH rear earth	G63a	Rear services connector	G73 B
	B	2.5LTB • I52 10 2.5LTB • G307a 1C	G73 B

Dashboard/engine wiring connector (*)		G99
TD 1.5BLK-PPL • G53b 3 — 4BLK • G53b — 1.5PPL-BLK 3		G99

Dashboard/engine wiring connector (**)		G99
4BLK • G53b — 1.5PPL-BLK B 1.5PPL-BLK — PPL-BLK • C16 E		G99

(*) up to chassis no.

(**) from chassis no.
