145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

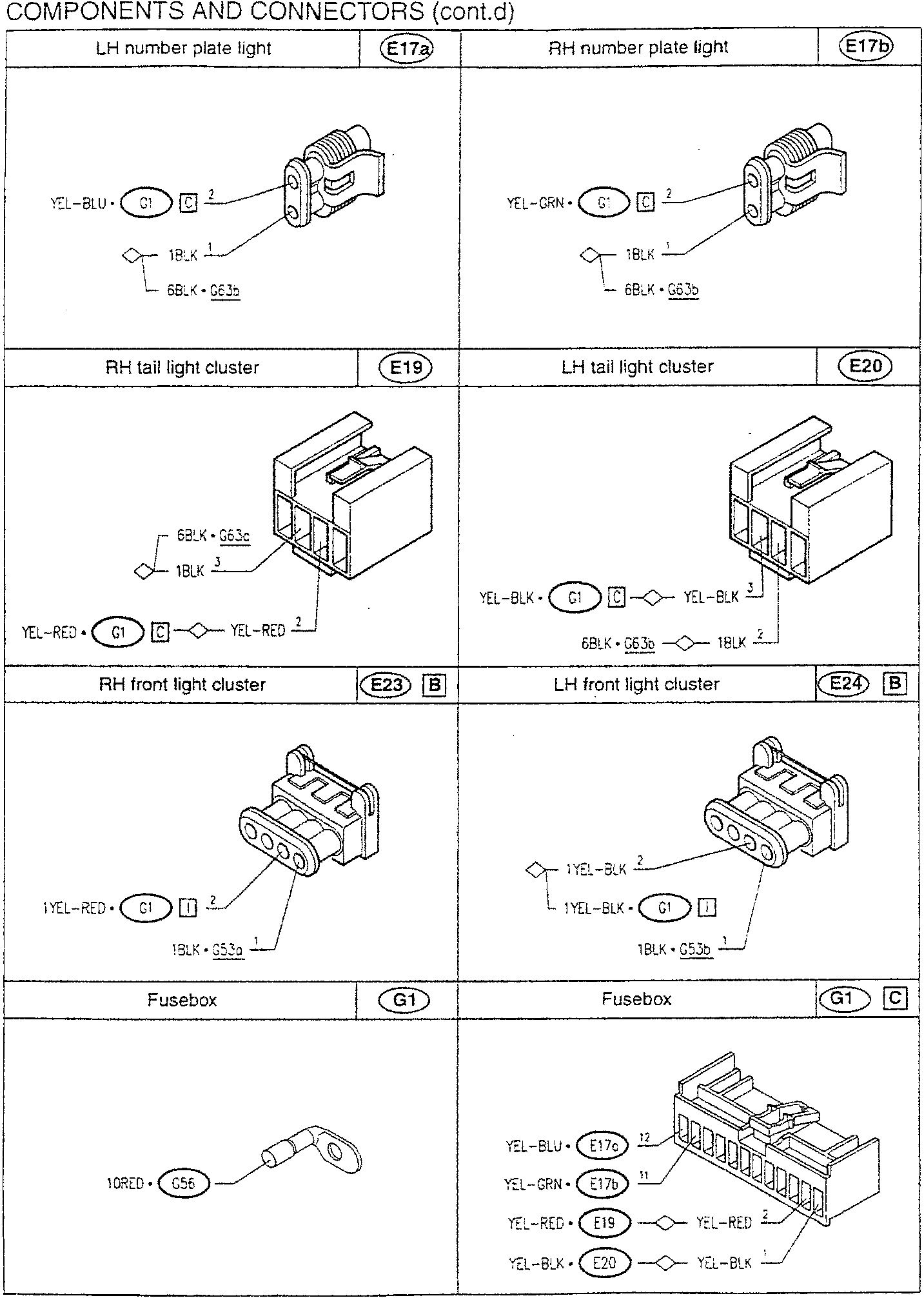

COMPONENTS AND CONNECTORS (cont.d)

LH number plate light	E17a	RH number plate light	E17b
	YEL-BLU • G1 C 2 1BLK 1 6BLK • G63b		YEL-GRN • G1 C 2 1BLK 1 6BLK • G63b
RH tail light cluster	E19	LH tail light cluster	E20
	6BLK • G63c 1BLK 3 YEL-RED • G1 C YEL-RED 2		YEL-BLK • G1 C YEL-BLK 3 6BLK • G63b 1BLK 2
RH front light cluster	E23 B	LH front light cluster	E24 B
	1YEL-RED • G1 2 1BLK • G53a 1		1YEL-BLK 2 1YEL-BLK • G1 1 1BLK • G53b 1
Fusebox	G1	Fusebox	G1 C
	10RED • G55		YEL-BLU • E17c 12 YEL-GRN • E17b 11 YEL-RED • E19 YEL-RED 2 YEL-BLK • E20 YEL-BLK 1
