146 electrical system diagnosisComponents and connectors

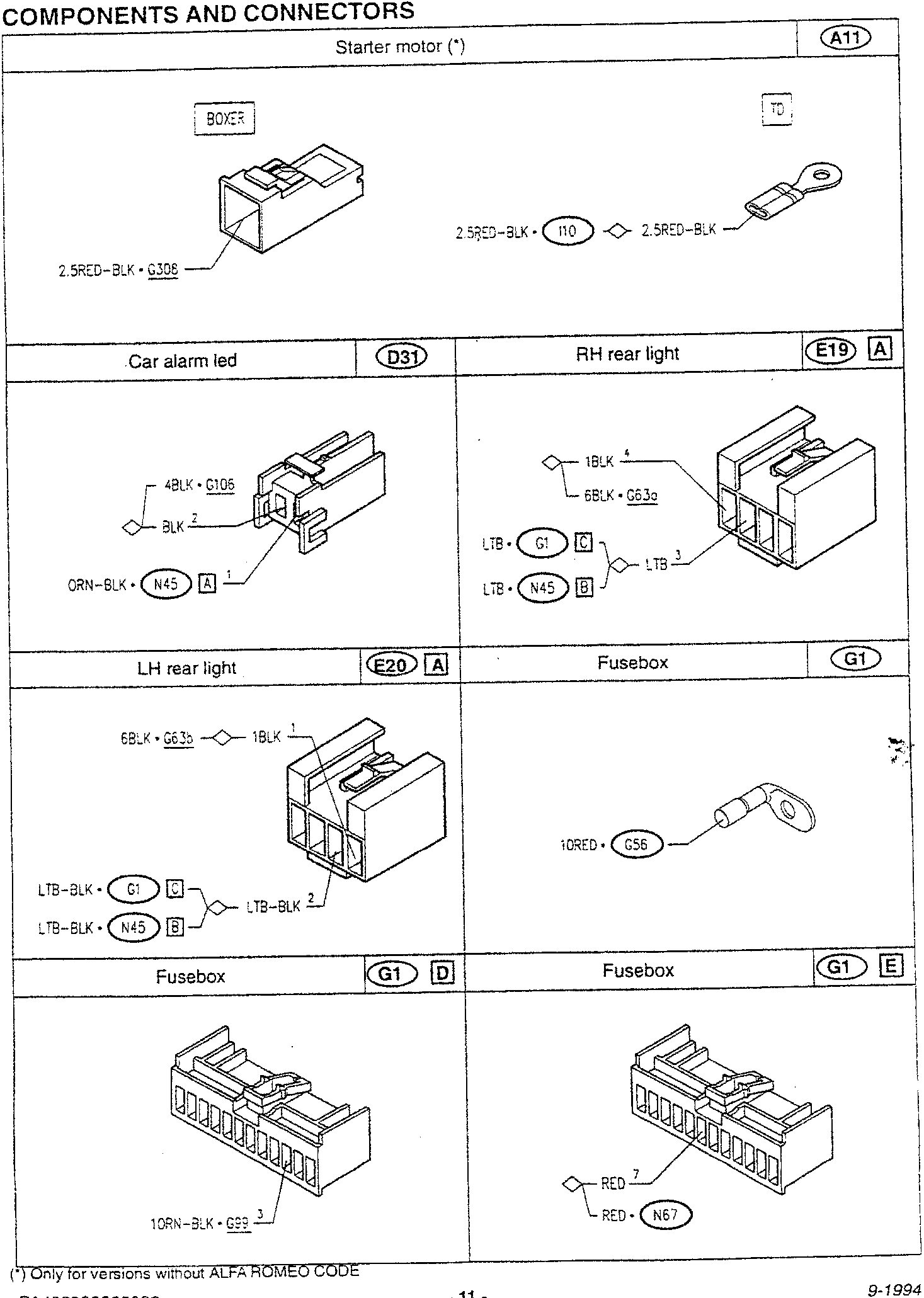

COMPONENTS AND CONNECTORS
| Starter motor (*) | A11 |
|---|---|
|
TD |
| Car alarm led | D31 | RH rear light | E19 A |
|---|---|---|---|
| LH rear light | E20 A | Fusebox | G1 |
|---|---|---|---|
| Fusebox | G1 D | Fusebox | G1 E |
|---|---|---|---|
(*) Only for versions without ALFA ROMEO CODE
