Luggage Compartment › Faultfinding table

146 electrical system diagnosisFaultfinding table

FAULTFINDING TABLE

Failure	Component to be checked
	G310	M12	I52	I12	C16 (*)
Luggage compartment opening control	●	●	●	●	●
Luggage compartment opening switch light (with side lights on)					●

(*) The Check Panel display C16 cannot be repaired. Therefore in the event of a failure it is not possible to change the switch and a complete new Check Panel must be fitted.

CHECKING COMPONENTS

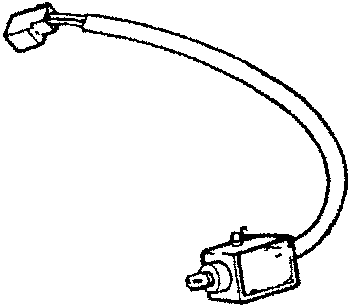

Luggage compartment opening electromagnet (M12)

SPECIFICATIONS
Nominal voltage	12V
Absorbed current	31A
Magnetic core stroke	10 ± 0,5 mm
