146 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

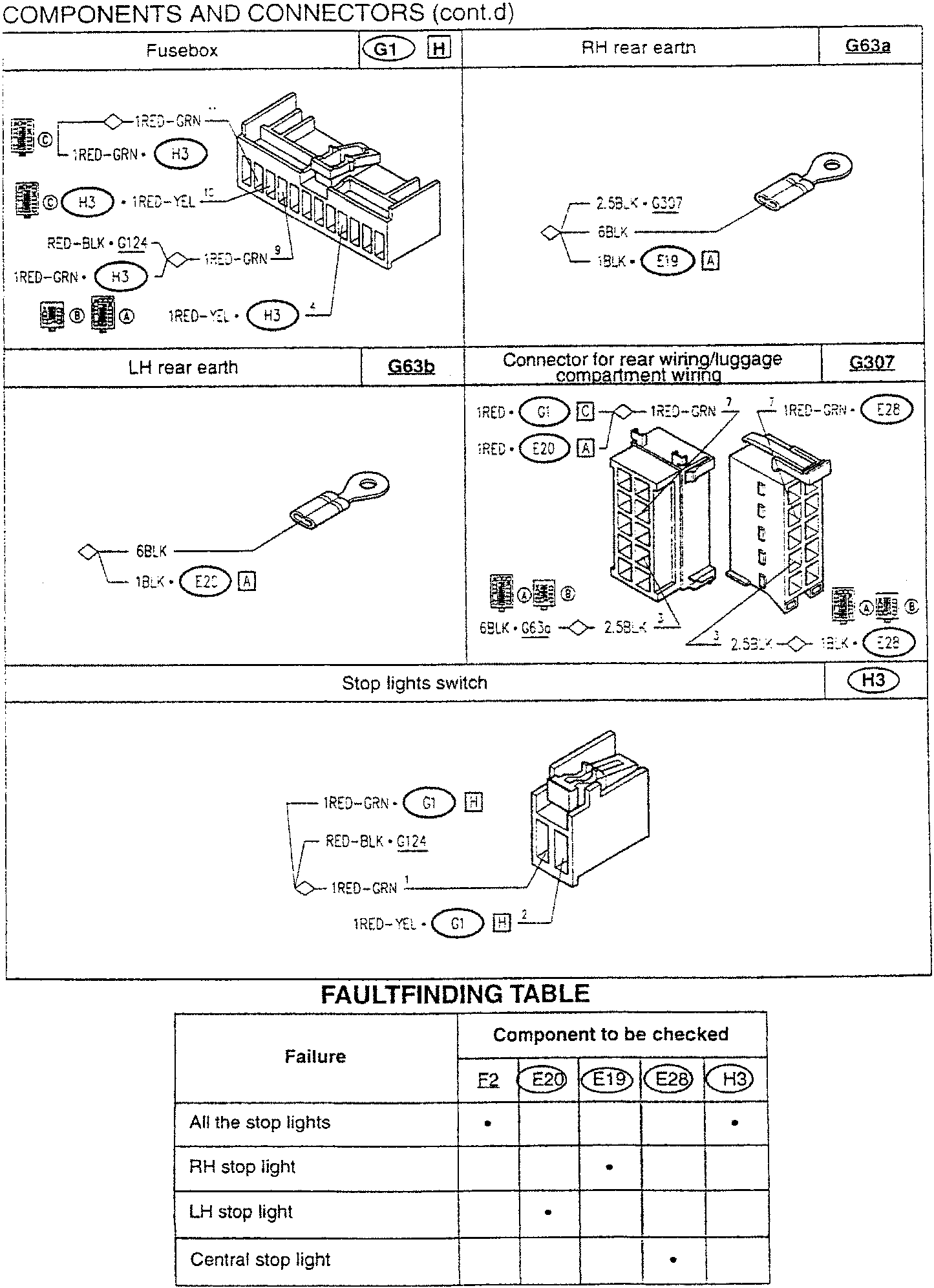

COMPONENTS AND CONNECTORS (cont.d)

Fusebox	G1 H	RH rear earth	G63a
LH rear earth	G63b	Connector for rear wiring/luggage compartment wiring	G307
Stop lights switch	H3

FAULTFINDING TABLE

Failure		Component to be checked
Failure	F2	E20	E19	E28	H3
All the stop lights	●				●
RH stop light			●
LH stop light		●
Central stop light				●
