146 electrical system diagnosisLocation of components

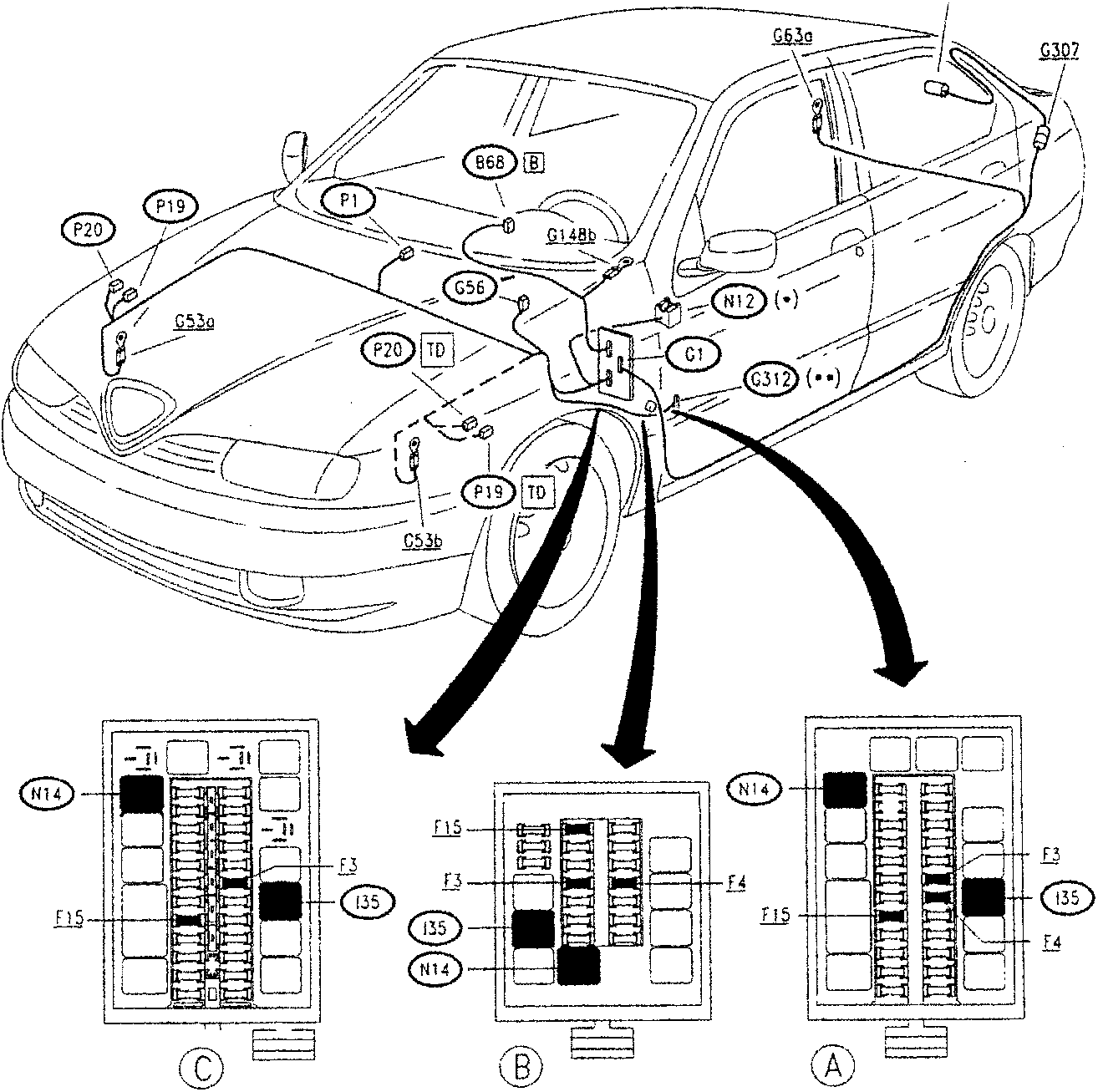

Location of components – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
LOCATION OF COMPONENTS
(•) black base
(••) yellow fuseholder
