Checking Components

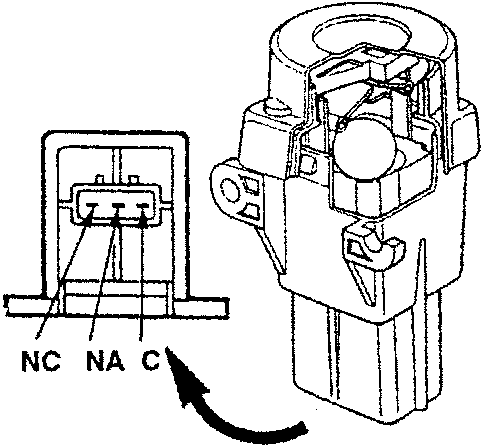

Inertial switch H20
Check the continuity between pin NC and C: this continuity is cut off in the event of a crash; The contact is closed again pressing the special button

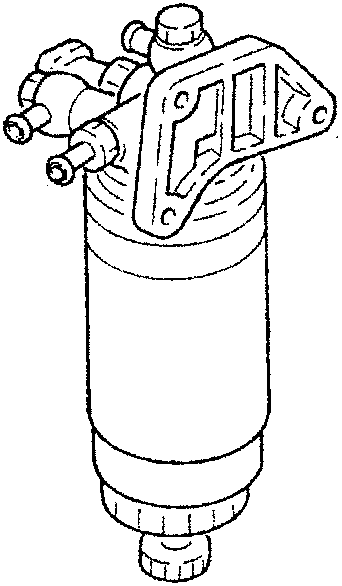

Fuel warming device N31
Thermal contact (conn. A)
| Contact closes (with decreasing temperature) | < 6°C |
|---|---|
| Contact opens (with increasing temperature) | > 15°C |

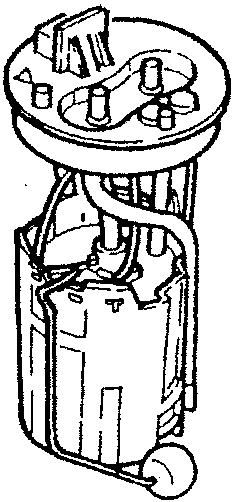

Fuel pump P18
Fuel pressure at idle speed > 2.0 bar
