Timing sensor (page 2 of 2)

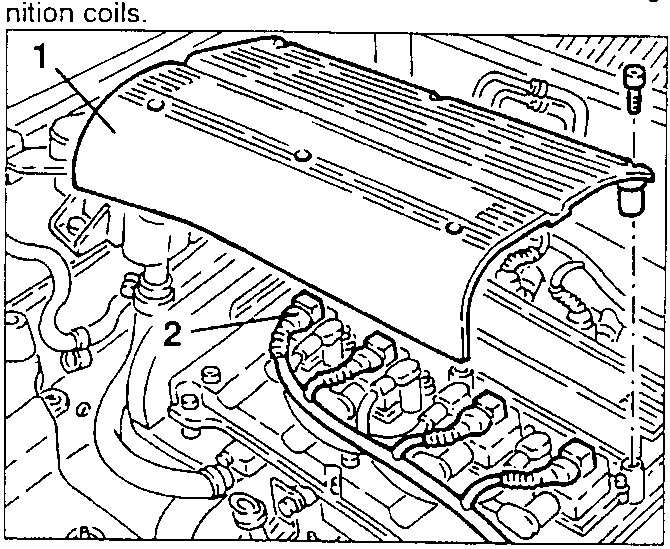

1. Slacken the fastening screws and remove the ignition coils cover.

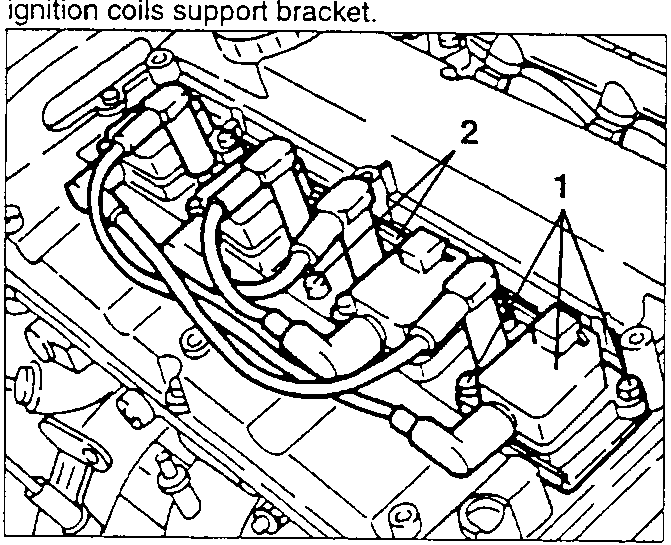

1. Slacken the fastening screws and remove the ignition coils.
2. Slacken the fastening screws and remove the ignition coils support bracket.

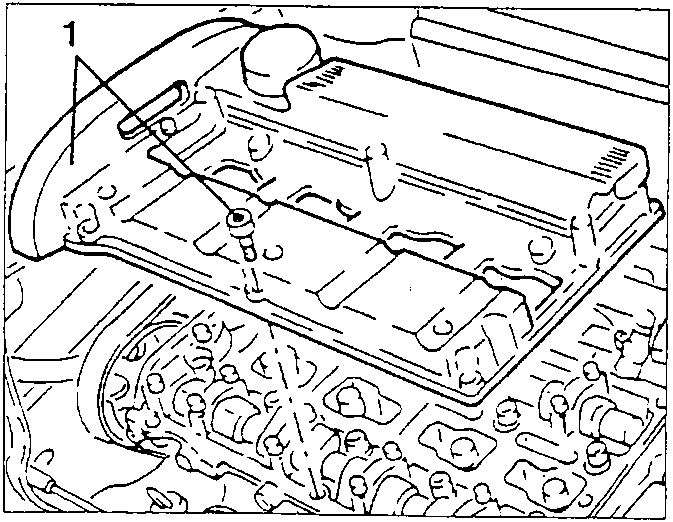

1. Slacken the fastening screws and remove the cylinder head cover complete with seal.

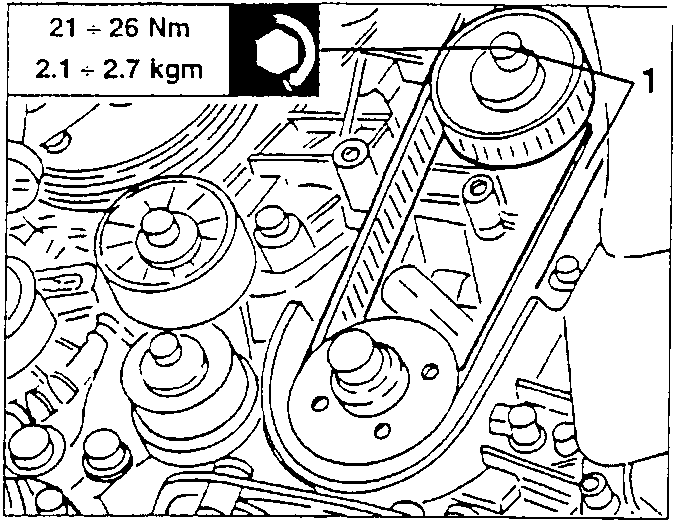

1. Working on the belt tensioner, slacken the tension of the belt, then remove it from the timing gear pulleys.

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

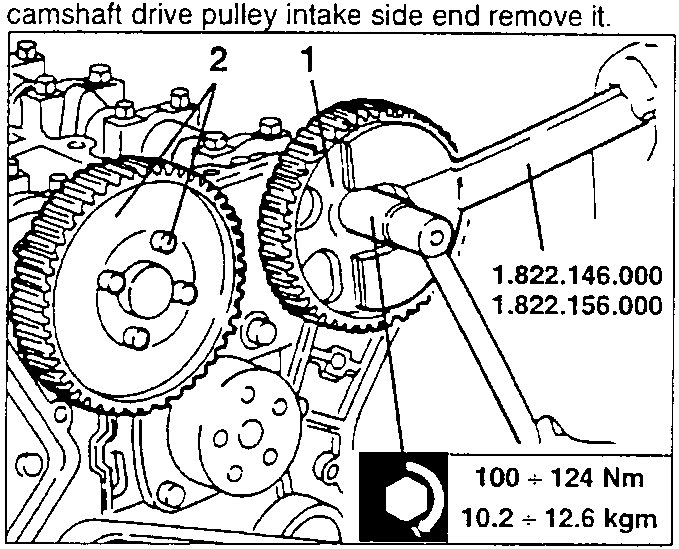

1. Using tools no. 1.822.146.000 and no. 1.822.156.000 slacken the screw fastening the timing gear drive pulley on the exhaust side and remove it.
2. Slacken the four fastening screws and remove the camshaft drive pulley intake side end remove it.

100 ÷ 124 Nm
10.2 ÷ 12.6 kgm

1. Slacken the fastening screws and remove the side guard on the intake side.

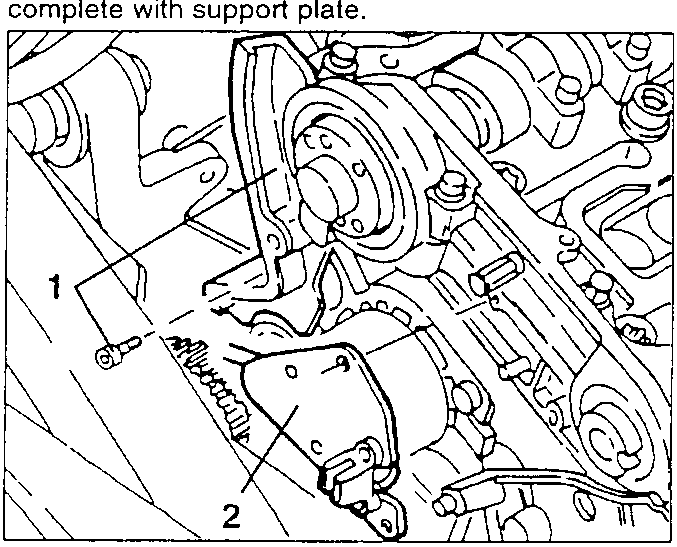

2. Disconnect the electrical connection, slacken the two fastening screws and remove the timing sensor complete with support plate.

Refer to GROUP 00 for refitting the timing gear drive belt and timing operations.
