TIMING VARIATOR ELECTROMAGNET

REMOVAL/REFITTING

• Disconnect the (-) battery terminal.

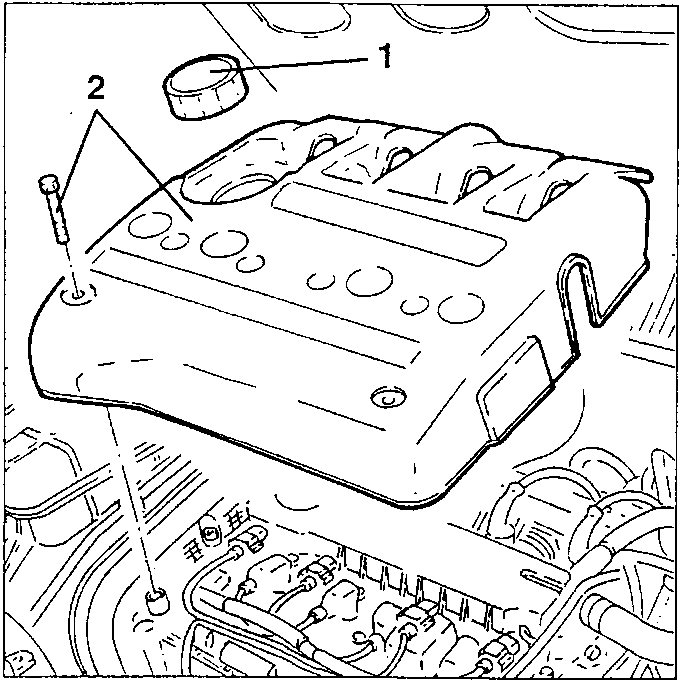

1. Remove the engine oil filler cap.
2. Remove the fastening screws and remove the ignition coil cover.

• Refit the engine oil filler cap.

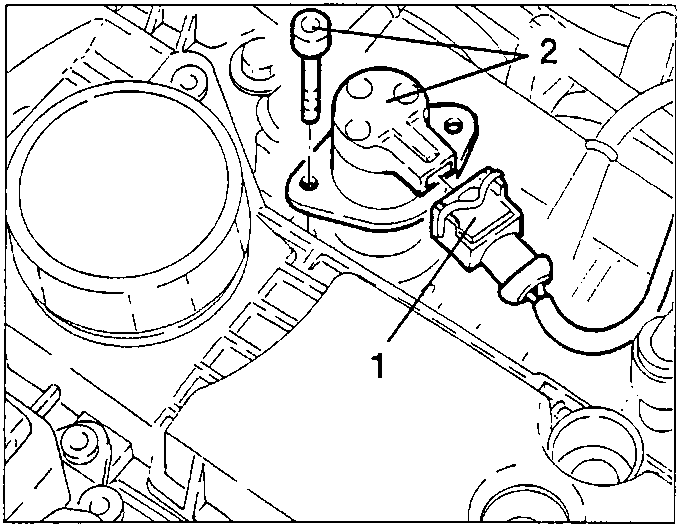

1. Reconnect the electric connection from the timing variator electromagnet.
2. Remove the electromagnet fastening screws and remove the electromagnet.
