Exhaust gas recirculation (1970 T. SPARK 16V) › E.g.r. valve
EngineE.g.r. valve

E.G.R. VALVE

REMOVAL/REFITTING

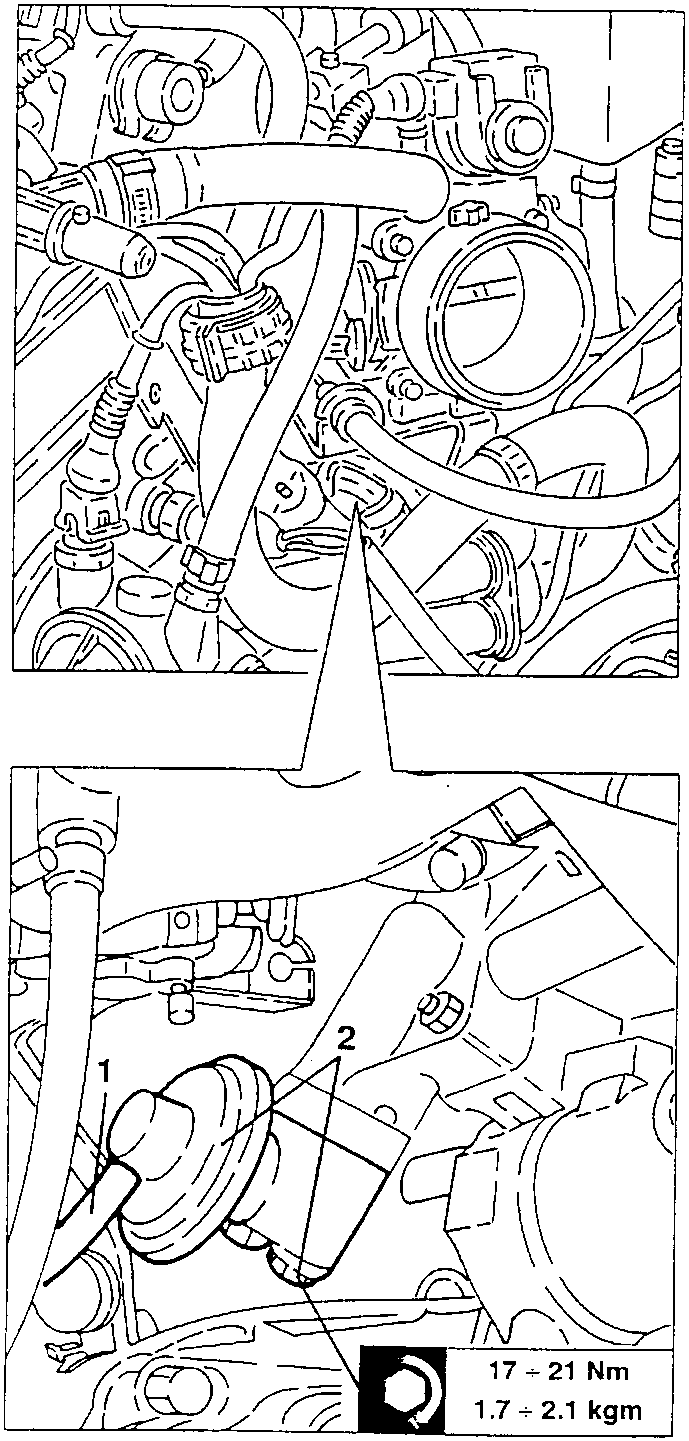

  • Remove the battery.
  • Loosen the fastening clamp and disconnect the corrugated sleeve from the throttle body.
  1. Disconnect the connection pipe with the modulation solenoid valve from the E.G.R. valve.
  2. Slacken the two fastening screws and remove the E.G.R. valve from the intake box.
Engine diagram showing E.G.R. valve removal steps with labeled parts 1 and 2, and torque specification 17 ÷ 21 Nm (1.7 ÷ 2.1 kgm)

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

E.G.R. MODULATING SOLENOID VALVE

REMOVAL/REFITTING

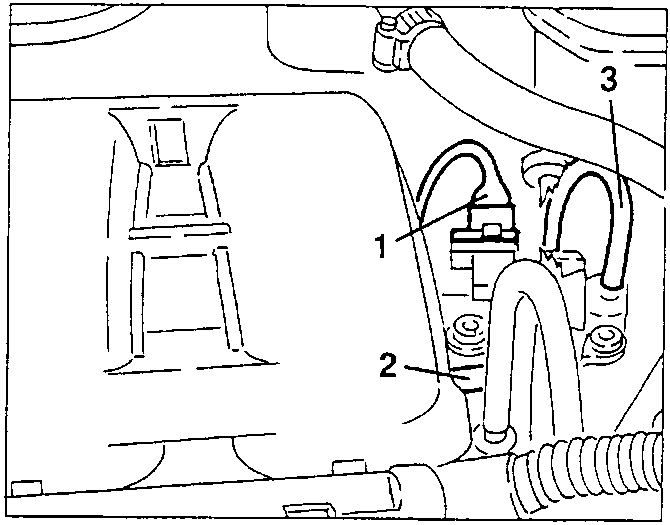

  • Disconnect the battery (-) terminal.
  1. Disconnect the electrical connection from the E.G.R. modulating solenoid valve.
  2. Disconnect the connection pipe with the E.G.R. valve from the modulation solenoid valve.
  3. Disconnect the vacuum takeoff pipe from the E.G.R. modulation solenoid valve.
Diagram showing E.G.R. modulating solenoid valve with labeled parts 1, 2, and 3

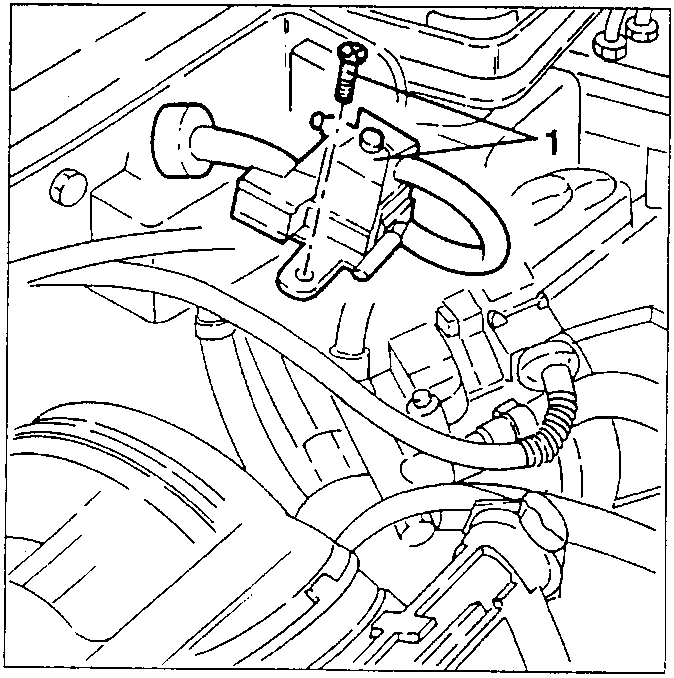

  1. Slacken the two fastening screws and remove the E.G.R. modulation solenoid valve.
Diagram showing E.G.R. modulating solenoid valve with labeled part 1
