Description

DESCRIPTION

With the constant velocity joints the axle shafts form the set of devices which transmit motion from the gearbox to the driving wheels.

The assembly of these devices, commonly called "transmission" when in conjunction with the gearbox, comprises the following:

• right and left axle shafts;
• constant velocity joints on wheel and gearbox side.
• intermediate shaft.

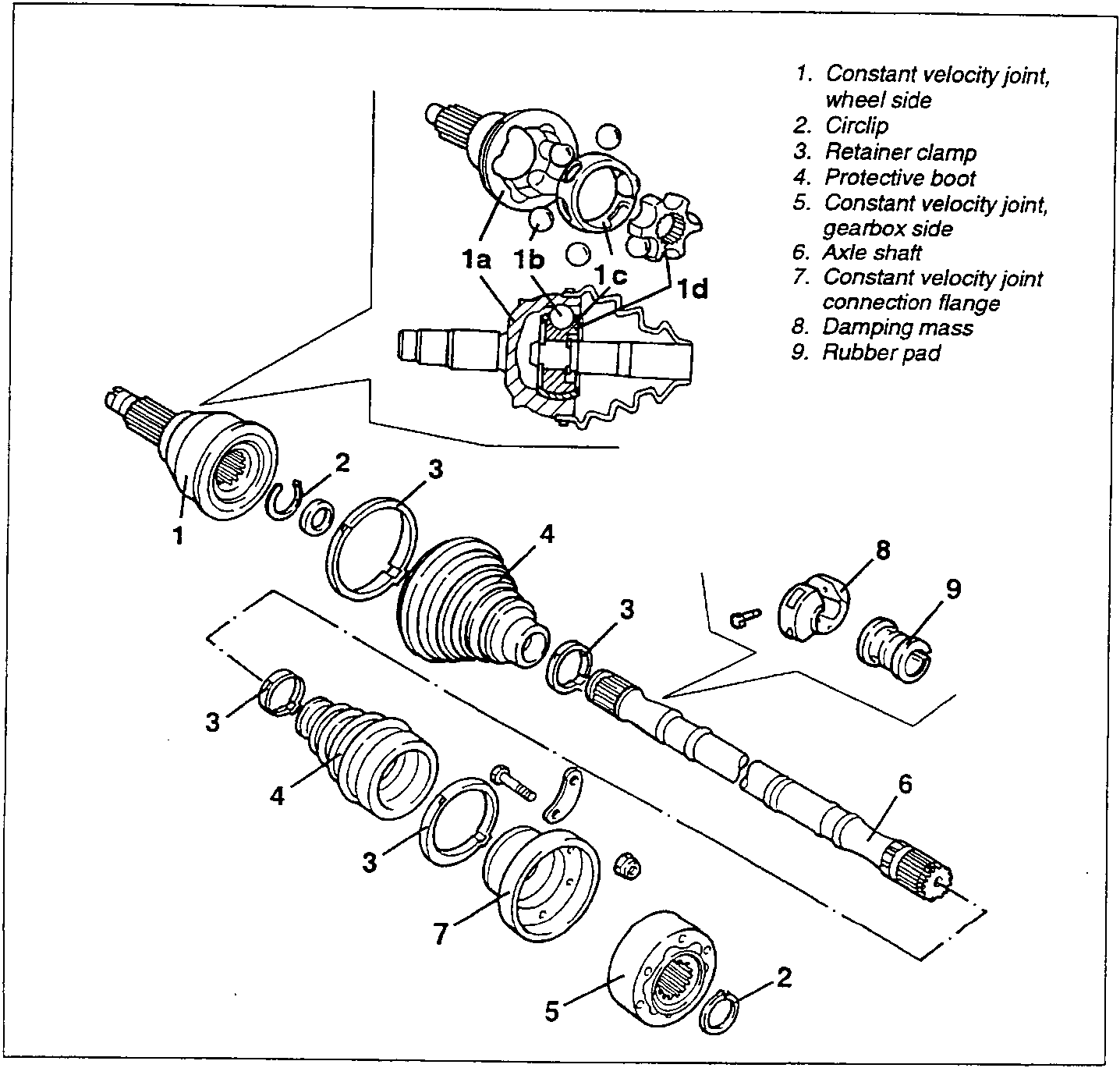

The high-resistance steel axle shafts (6) have grooved ends to enable coupling with the constant velocity joints (1) and (5).

The housings for the joint retainer circlips (2) are on the ends.

The constant velocity joints are formed of an inner core (1d) known as "drive", keyed onto the input shaft and an outer shell (1a) called "driven", which forms the output element of the joint.

The inner core has six spherical grooves on its outer surface containing six balls (1b), held in place by a cage (1c).

These balls are the parts which actually transmit the motion and are also located in other grooves machined on the inner surface of the shell.

The left-hand axle shaft is fitted with a vibration damping mass (8) formed of two half shells and a rubber pad (9) for positioning.

1. Constant velocity joint, wheel side
2. Circlip
3. Retainer clamp
4. Protective boot
5. Constant velocity joint, gearbox side
6. Axle shaft
7. Constant velocity joint connection flange
8. Damping mass
9. Rubber pad
