Power steering pump

POWER STEERING PUMP

REMOVAL/REFITTING
Specific for Turbodiesel engine

• Empty the oil from the power steering system, using a suitable syringe.

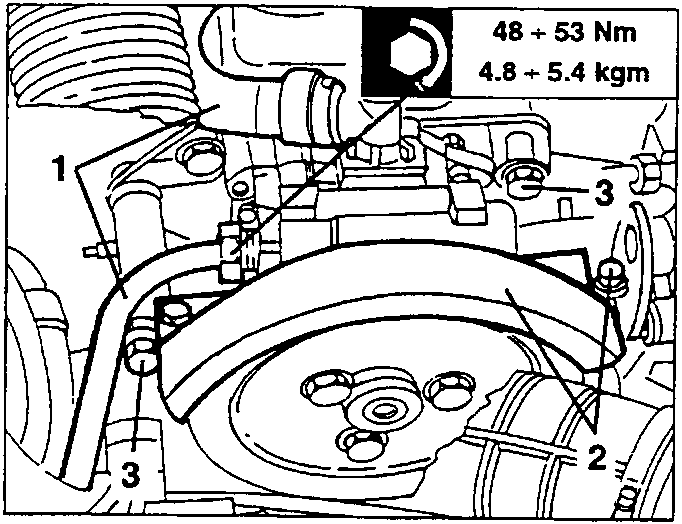

1. From the power steering pump disconnect the oil inlet and outlet hoses.
2. Slacken the two screws and remove the power steering pump drive belt guard.
3. Slacken the screws fastening the power steering pump and working on the micrometric tensioner, slacken the belt tension and remove it.

• Remove the screws slackened previously and remove the power steering pump.

48 + 53 Nm
4.8 + 5.4 kgm

REMOVING/REFITTING
Specific for T.Spark 16V engine

• Set the car on a lift.
• Remove the right front wheel and mud flap.
• Empty the power steering tank oil using a suitable syringe.

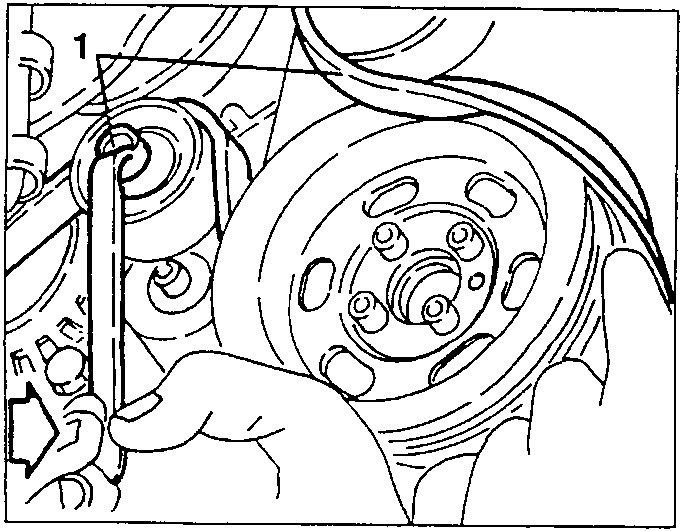

1. Raise the car and proceeding as illustrated on the belt tensioner, slacken the tension of the auxiliary components drive belt and remove it.

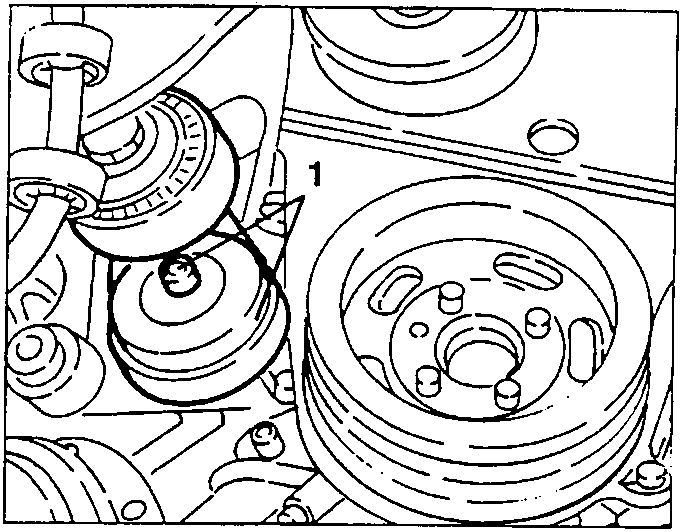

1. Slacken the screw fastening the belt tensioner.

48 + 53 Nm
4.9 + 5.4 kgm

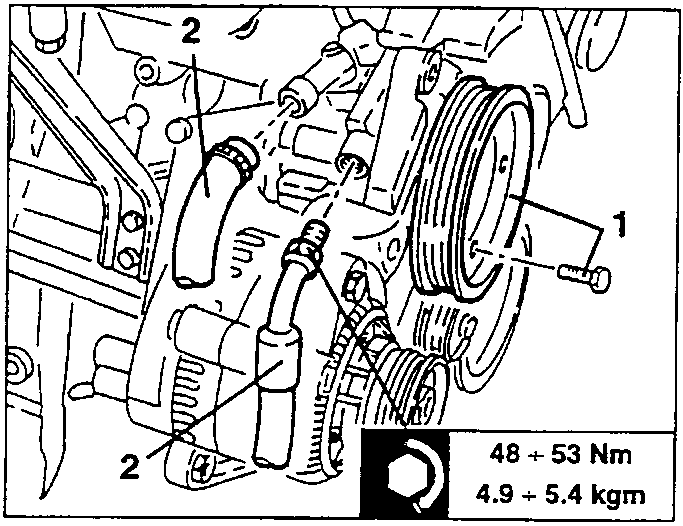

1. Holding the pump shaft still, slacken the three screws fastening the power steering pump pulley and remove the latter.
2. Working from above, disconnect the two intake and delivery pipes from the power steering pump.

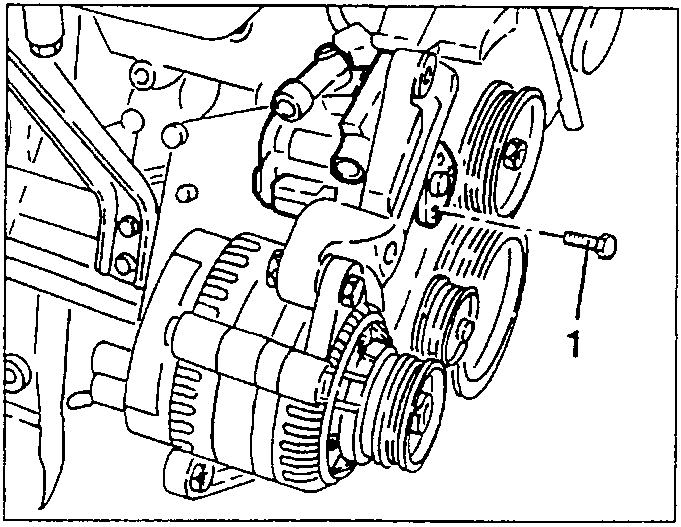

1. Slacken the three fastening screws and remove the power steering pump.
