Steering linkages

STEERING LINKAGES

REMOVAL/REFITTING

• Remove the air intake box (see GROUP 10).

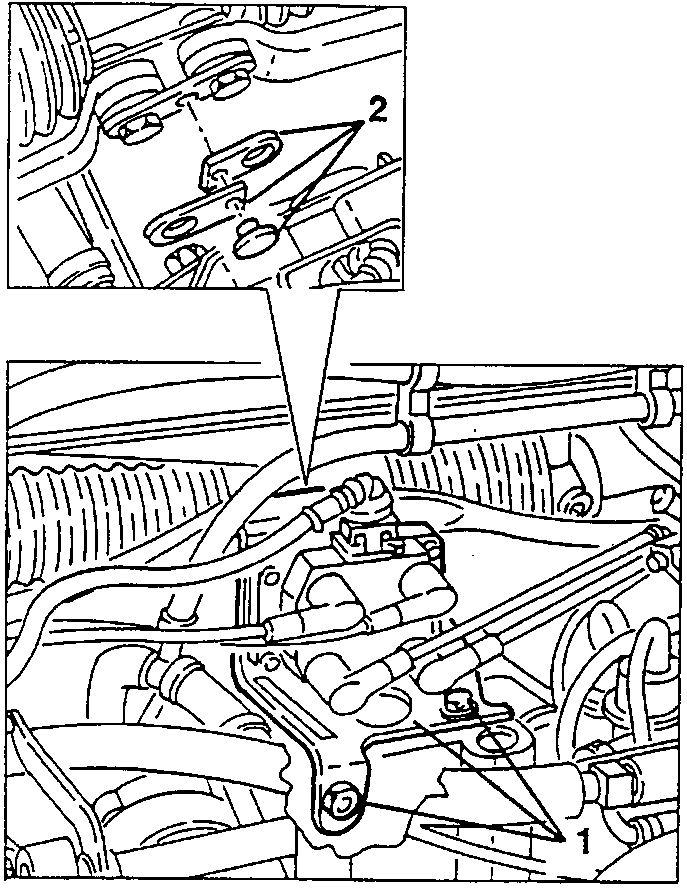

1. Slacken the screw and nut fastening the ignition coil support bracket, then move it to one side.
2. Remove the plastic button and retrieve the two safety catches.

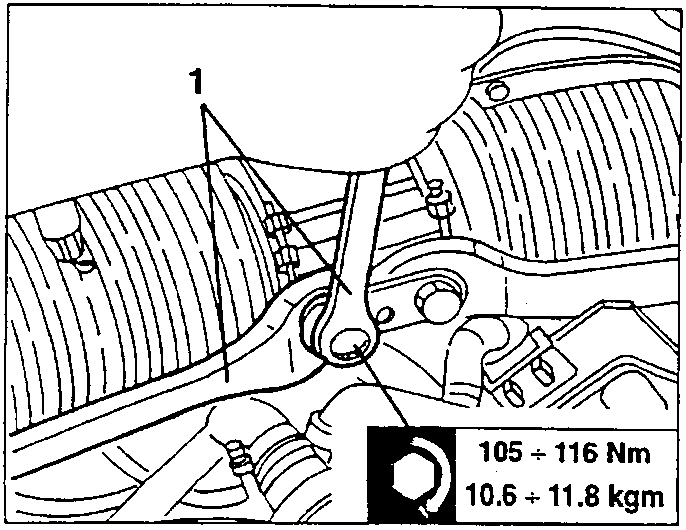

1. Slacken the fastening screw and disconnect the track rod concerned from the power steering box.

105 ÷ 116 Nm
10.6 ÷ 11.8 kgm

• Remove the wheel on the side concerned.

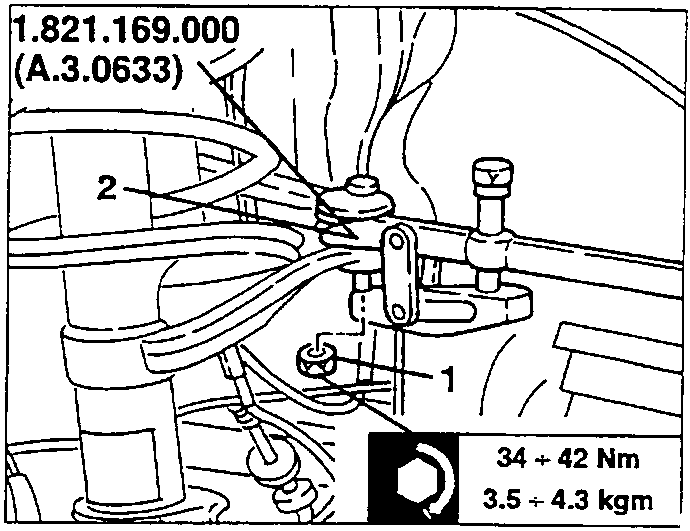

1. Slacken the nut fastening the track rod from the connection on the shock absorber.
2. Using tool N° 1.821.169.000 (A.3.0633), disconnect the steering knuckle from the connection on the shock absorber.

34 ÷ 42 Nm
3.5 ÷ 4.3 kgm

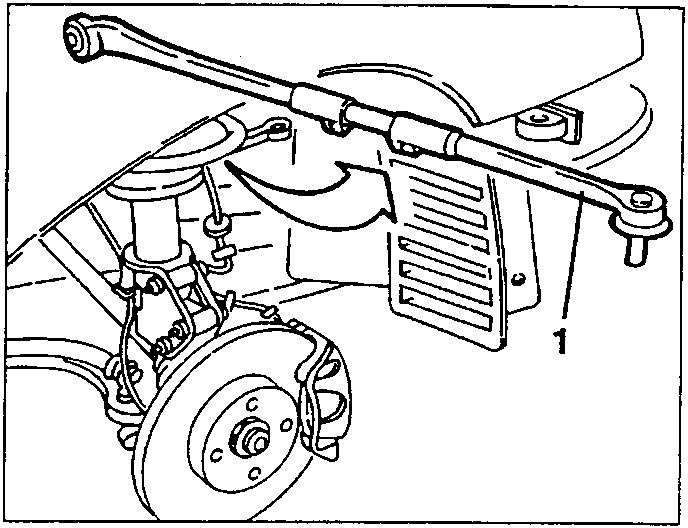

1. Working from the wheel house, remove the complete track rod.

When refitting, adjust the track rods as described below.

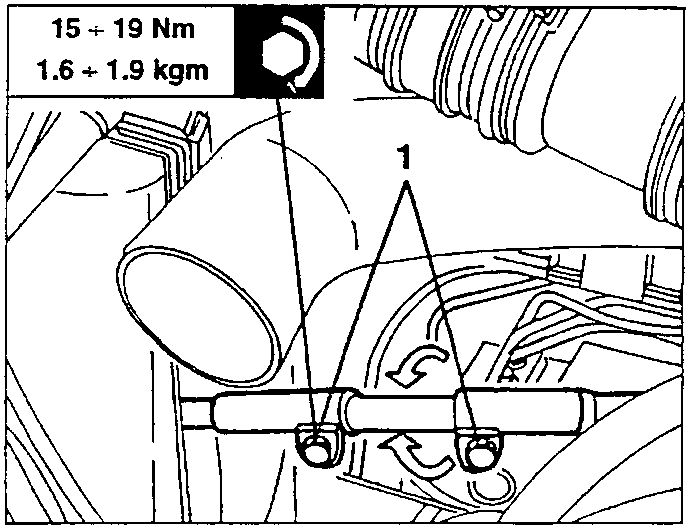

1. Slacken the two fastening screws and work on the adjustment coupling until the specified toe-in has been obtained (see GROUP 44).

15 ÷ 19 Nm
1.6 ÷ 1.9 kgm
