Checking Rear Wheel Toe-In
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- Alignment › Checking Rear Wheel Toe-In
Suspension and wheelsChecking Rear Wheel Toe-In

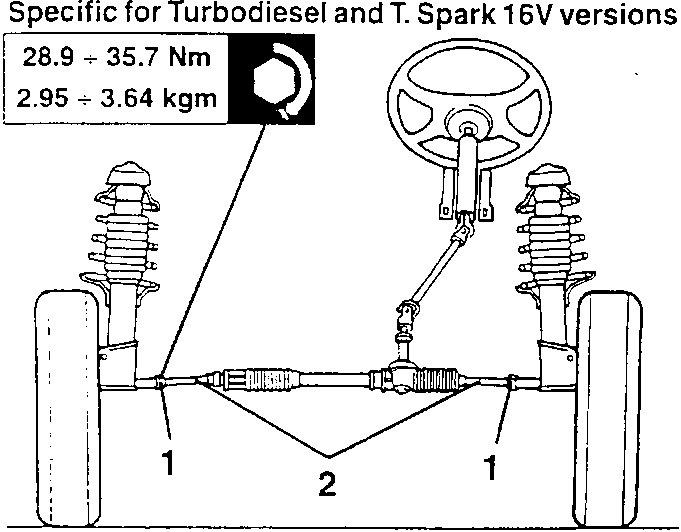

Specific for Turbodiesel and T. Spark 16V versions
28.9 ÷ 35.7 Nm
2.95 ÷ 3.64 kgm

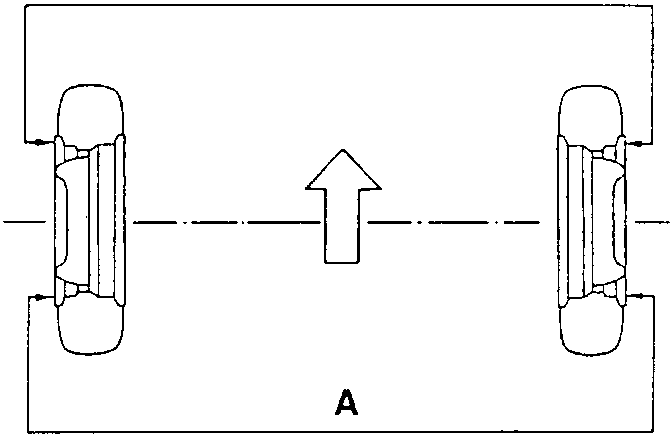

Checking Rear Wheel Toe-In
- Using a suitable tools check that the toe-in value (not adjustable) is within the specified limits.
| Rear wheel toe-in A - B (*) | |
|---|---|
| Boxer | 4 ± 2 mm |
| Turbodiesel 1.4 T. Spark 16V 1.6 T. Spark 16V |
1 ± 1 mm |
| 1.8 T. Spark 16V 2.0 T. Spark 16V |
1.5 ± 1 mm |
(*) : Values measured unladen in running order (with specified fluids)

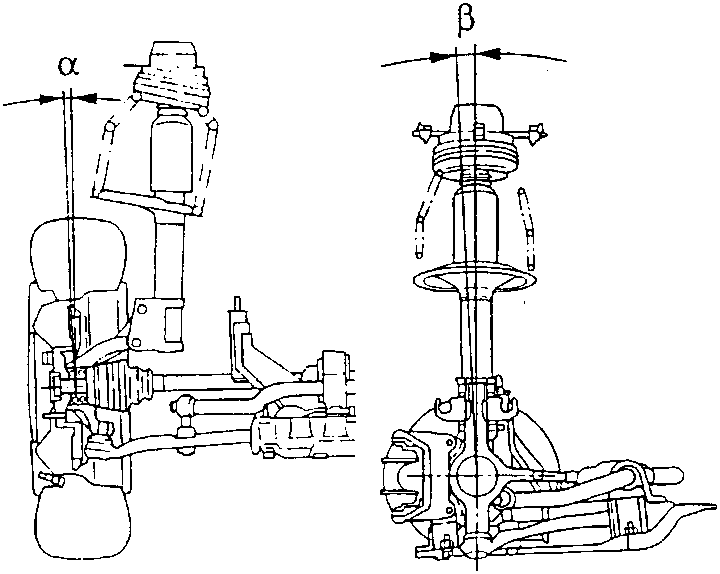

Checking Front Wheel Camber and Caster
- Check that the camber and caster angles (not adjustable) are within the specified limits.
| Front wheel camber "α" (*) | |
|---|---|
| Boxer | 0°10' ± 20' |
| Turbodiesel 1.4 T. Spark 16V 1.6 T. Spark 16V |
-1°10' ± 20' |
| 1.8 T. Spark 16V 2.0 T. Spark 16V |
-1°30' ± 20' |
(*) : Values measured unladen in running order (with specified fluids)
| Caster angle "β" (*) | |
|---|---|
| 3°20' ± 30' |
(*) : Values measured unladen in running order (with specified fluids)
NOTE: If the values measured differ from the specified values body squaring should be checked (see GROUP 70).

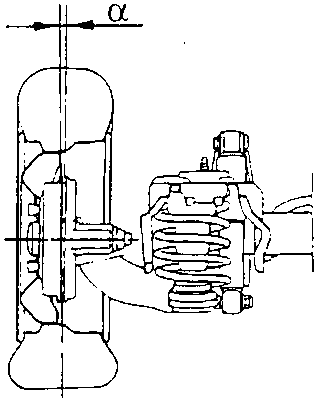

Checking Rear Wheel Camber
- Check that the camber angle (not adjustable) is within the specified limits.
| Rear wheel camber "α" (*) | |
|---|---|
| -1° ± 15' (▲) | |
| -45' ± 15' |
(*) : Values measured unladen in running order (with specified fluids)
(▲) : Specific for Boxer versions
