Checks and inspections

CHECKS AND INSPECTIONS

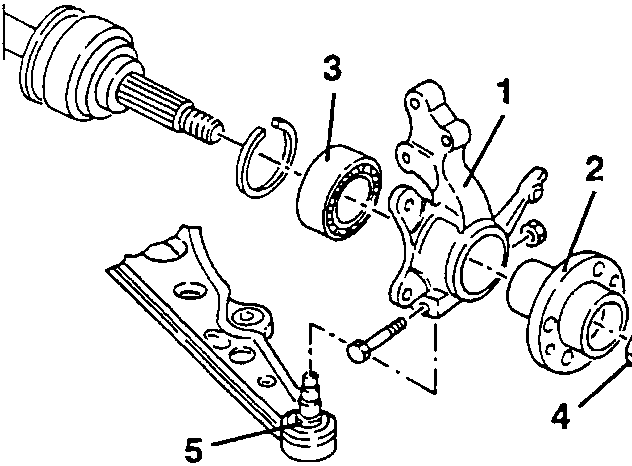

1. Check the inner surfaces of the wheel upright for traces of seizing and the wishbones for damage and obvious signs of bumps, distortion or traces of breakage and change the upright if necessary.
2. Check the surfaces of the wheel hub for damage and obvious signs of bumps or traces of breakage and change it if necessary.
3. Check the conditions of the roller bearing for cracks, seizing or sticking and if necessary change the bearing.
4. In any case, always change the C.V. joint locknut before refitting.
5. Check the conditions of the ball pin fastening the wheel upright to the wishbone for distortion, excessive wear, cracks, sticking or signs of oxidation and, if necessary, change the ball pin.

RE-ASSEMBLY

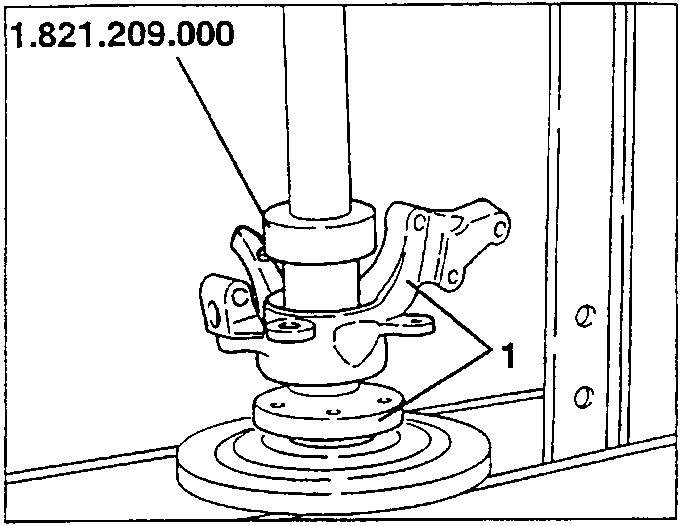

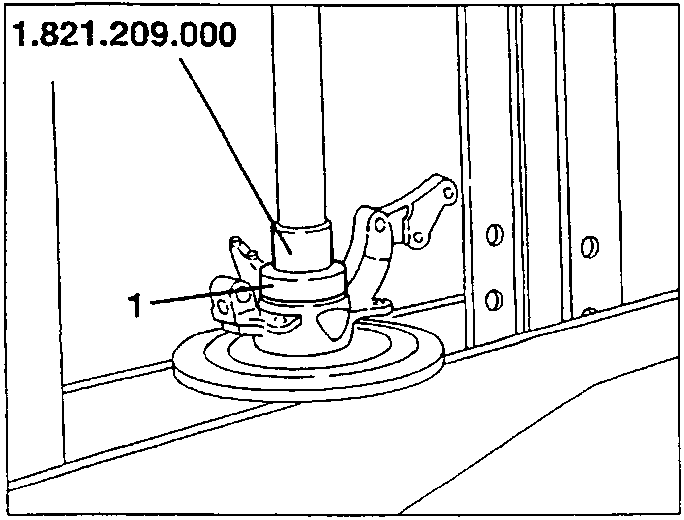

1. Working under the press and using installing tool N° 1.821.209.000 insert the bearing in the wheel upright.
