FRONT WHEEL UPRIGHT (Boxer versions)

FRONT WHEEL UPRIGHT (Boxer versions)

REMOVAL/REFITTING

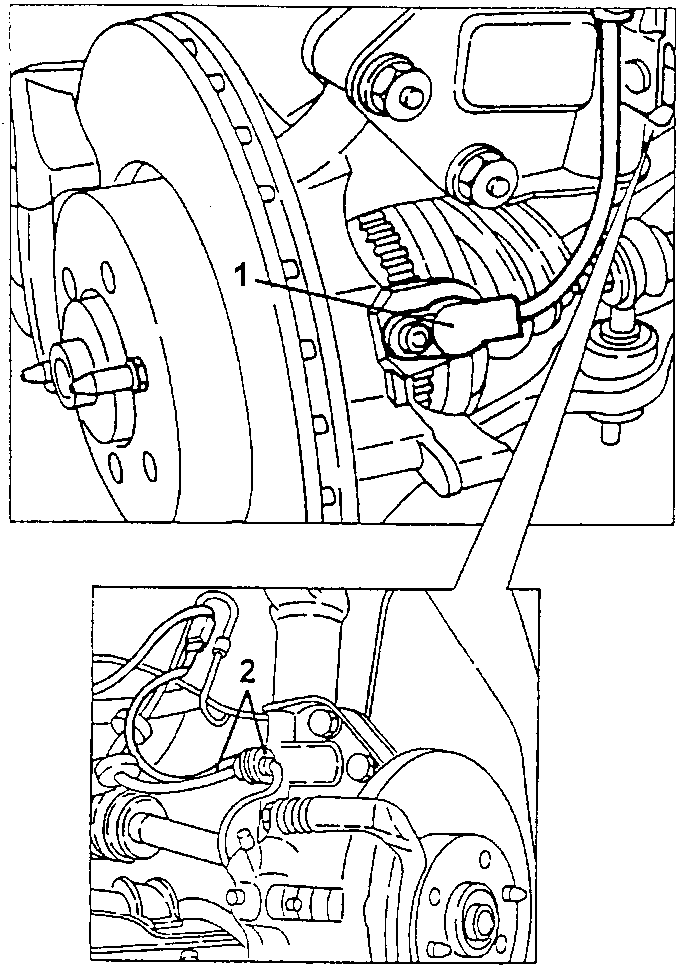

1. Slacken the fastening screw and remove the inductive A.B.S. sensor from the wheel upright.
2. Disconnect the brake pad wear sensor cable and the brake hose from the coupling on the shock absorber.

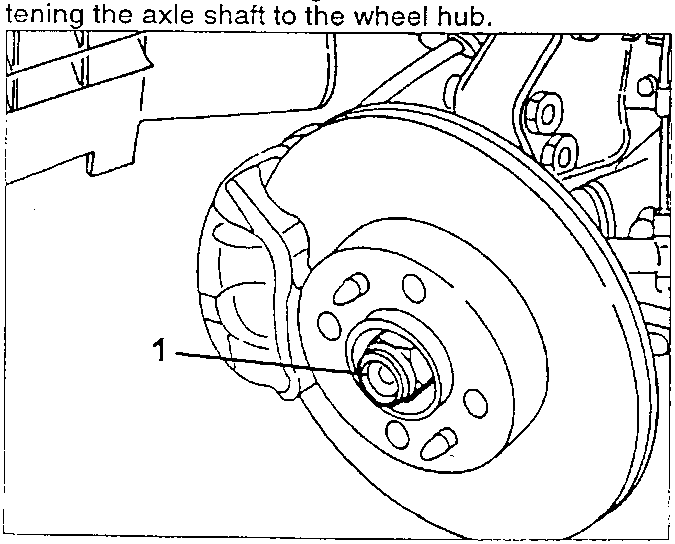

1. Remove the caulking and slacken the nut fastening the axle shaft to the wheel hub.

49 ÷ 60 Nm
5.0 ÷ 6.1 kgm

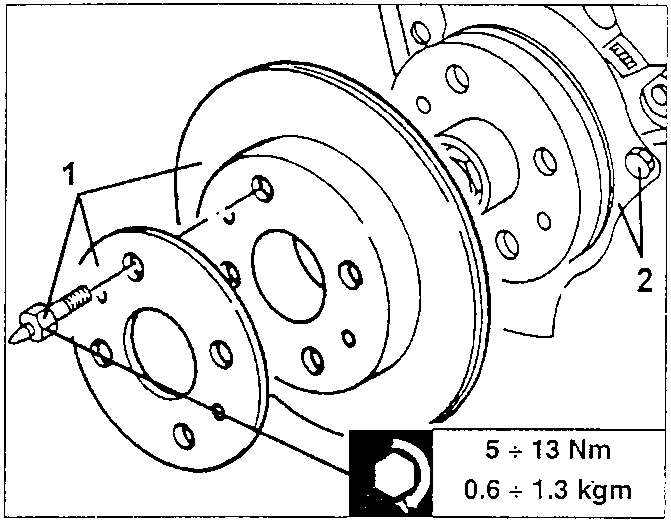

1. Slacken the two pins and remove the spacer and brake disk.
2. Slacken the remaining fastening screw and remove the brake disk protective cover.

1. Slacken the bolt fastening the wishbone to the wheel upright.

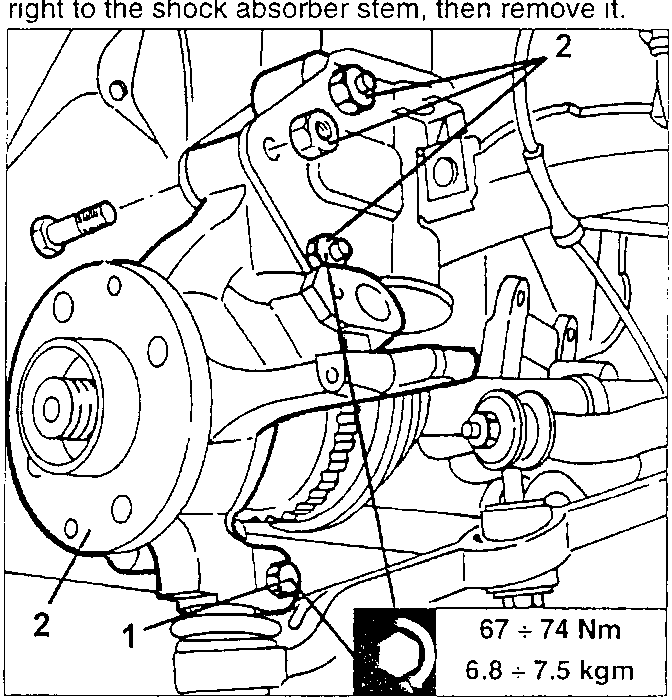

2. Slacken the three bolts fastening the wheel upright to the shock absorber stem, then remove it.

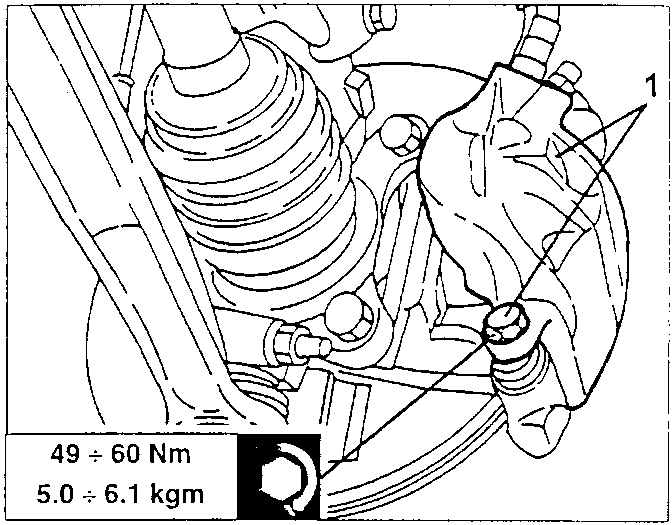

1. Slacken the two brake caliper fastening screws, then move it aside without disconnecting the pipe.

When refitting, change the brake caliper fastening screws and tighten them to the specified torque.

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm
