TECHNICAL FEATURES OF THE ENGINE

SPECIFIC DATA

Engine	AR 33503	AR 67601	AR 67106	AR 32201
	Cycle	Four-stroke Otto
Feed / Ignition	Motronic M2.10.4 Motronic M1.5.5	Motronic M2.10.4 Motronic M1.5.5	Motronic M2.10.4	Motronic M1.5.5
Firing order	1 - 3 - 4 - 2
Piston displacement	1370	1598	1747
Cylinders' number	4 in line
Boring	82	82	82	82
Stroke	64.87	75.65	82.7
Maximum power	CV CEE (kW CEE) revs/min 103 (76) 6300	120 (88) 6300	140 (103) 6300	144 (106) 6500
Pull-in torque	kgm CEE (Nm CEE) revs/min 12.7 (124) 4600	14.7 (144) 4500	16.8 (165) 4000	17.2 (169) 3500
Compression ratio	10.5 : 1	10.3 : 1	10.3 : 1	10.3 : 1
Pressure of the engine oil	bar ≥ 1.5 ≥ 4.5 (*)
- At slow running					≥ 1.5	≥ 1.5	≥ 1.5	≥ 1.5
- At 4000 revs/min	≥ 4.5 (*)	≥ 4.5	≥ 4.5	≥ 4.5
Slow running	880 ± 50	840 ± 50	840 ± 50	840 ± 50

(*) : For engines of the type AR33503 with injection system - Motronic ignition M1.5.5: > 4.0

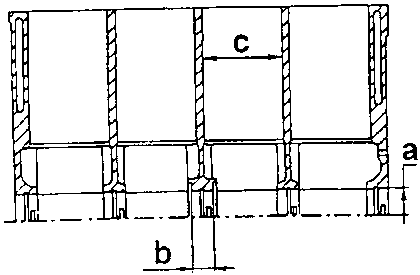

COMPLETE CYLINDER BLOCK

Cylinder block

Unit: mm
Diameter of main bearing "a"	56.705 ÷ 56.718
Length of shoulder for rear main bearing "b"	21.720 ÷ 21.800
Cylinders' diameter "c"	Class A	82.000 ÷ 82.010
	Class B	82.010 ÷ 82.020
	Class C	82.020 ÷ 82.030
Oversize by 0.1

Oil pump

Clearance between pump seat and driven gear "a"	0.080 ÷ 0.186 mm
Clearance between face of pump cover and upper side of gears "b"	0.025 ÷ 0.070 mm
Spring of pressure relief valve	Check load	6.4 ÷ 7.2 kg
Spring length	36 mm
