Technical data and maintenanceValve springs

Valve springs

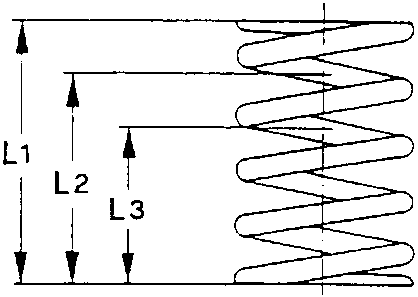

Free length "L1"	53.9 mm
Spring length with valves closed "L2"	36 mm
Load corresponding to spring length with valves closed	36.7 ÷ 39.6 daN (37.4 ÷ 40.4 kg)
Length of springs with valves open "L3"	26.5 mm
Load corresponding to spring length with valves open	55.9 ÷ 60.8 daN (57 ÷ 62 kg)

Plates

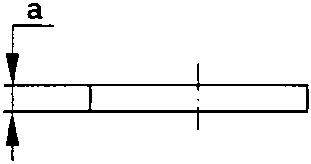

Thickness of plates "a"

3.25 ÷ 4.40 mm

Valve cups

Diameter of valve cups "a"	36.975 ÷ 36.995
Radial clearance between valve cups and housings	0.005 ÷ 0.050

Camshaft

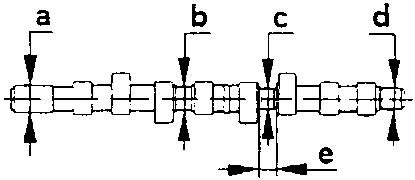

Diameter of camshaft journals	First "a"	29.945 ÷ 29.960
	Second "b"	25.500 ÷ 25.515
	Third "c"	24.000 ÷ 24.015
	Fourth "d"	23.945 ÷ 23.960
Width of shaft shoulder "e"		19.100 ÷ 19.200
Cam lift (on valve spindle without play)	Intake	8.5
	Exhaust	8.5
Radial clearance between camshaft journals and seats		0.03 ÷ 0.07
Camshaft end float		0.1

Valve clearance

Valve clearance for checking timing	Intake	0.50
	Exhaust	0.50

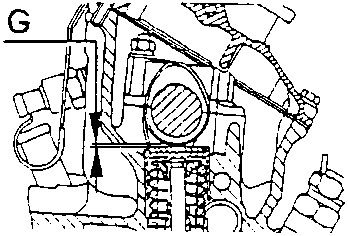

Operating valve clearance (with cold engine) "G"	Intake	0.30 ± 0.05
	Exhaust	0.35 ± 0.05
