WHEELS' POSITIONS AND CHARACTERISTIC ANGLES (*)

Features / Versions		Boxer	Turbodiesel 1.4 T.Spark 16V 1.6 T.Spark 16V	1.8 T.Spark 16V 2.0 T.Spark 16V
Front position (B - A)	See GROUP 44	40 ± 5 mm	- 13 ± 5 mm	- 26 ± 5 mm
Rear position (C - D)	See GROUP 44	7 ± 5 mm	- 2 ± 5 mm	- 2 ± 5 mm

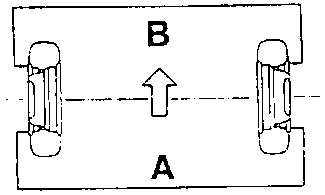

Toe-in/Toe-out front wheels (A - B)		3.5 ± 1 mm	- 1 ± 1 mm 0 ± 1 mm (•)	0 ± 1 mm

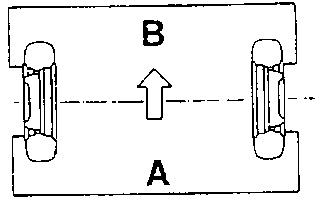

Toe-in rear wheels (A - B)		- 0.5 ± 2 mm 2.0 ± 2 (▲)
Camber of front wheels "α"		- 1° ± 20'	- 1°10' ± 20'	- 1°30' ± 20'
Caster "β"		2°40' ± 30'
Camber of rear wheels "α"		- 1° ± 20' - 45' ± 30' (▲)

(*): Values measured in running gear (with prescribed supplies) and with tyres with prescribed pressure.
(•): Specific for JUNIOR versions
(▲): From chassis number 4.058.043 - 2.076.237.
