Alfa Romeo 155 Factory Service Manual (1992-1998)52 · Axle shafts
52 · General

Checking and adjustment (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Checking and adjustment
Axle shaftsChecking and adjustment · page 2 of 2
  1. Position the constant speed joint on the axle shaft and using a soft mallet, drive it home.
    Fill the boot and grease the joint with about 120 g of the specified grease.
Axle shafts section diagram for vehicle repair reference
Constant speed joint being driven onto axle shaft with tool 1.820.082.000
  1. Using tool No. 1.820.082.000 slide the internal clamp on to secure the boot.

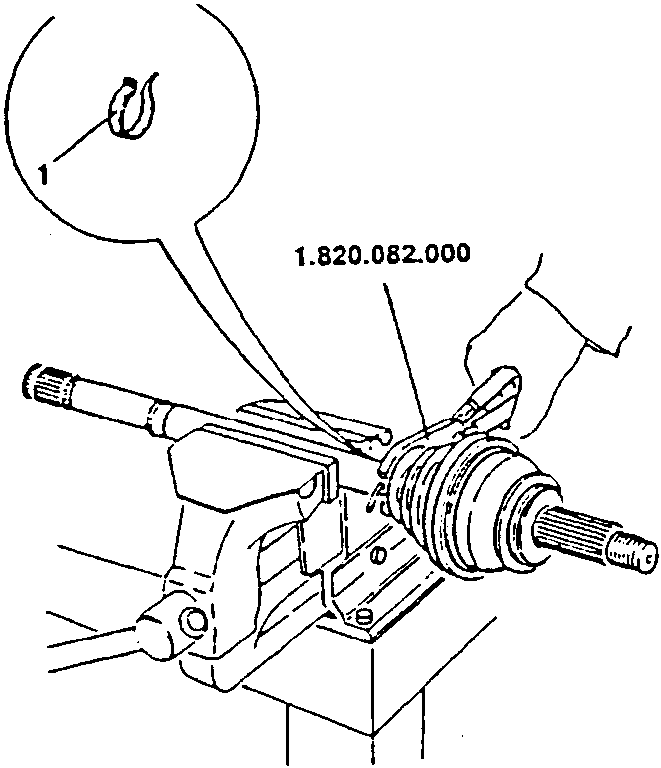

Internal clamp being slid onto joint with tool 1.820.082.000
  1. Using tool No. 1.820.084.000 slide the external clamp on to secure the boot.

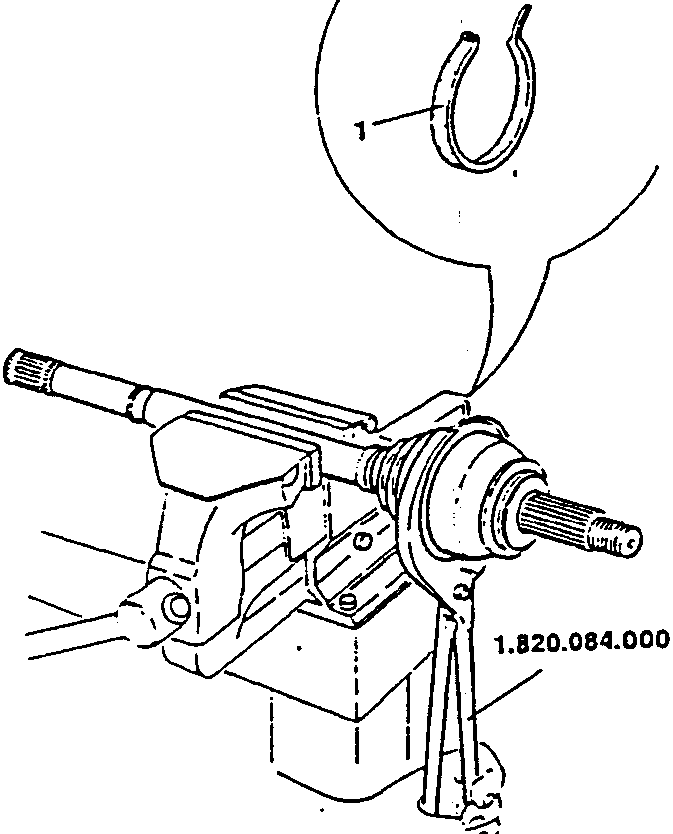

External clamp being slid onto joint with tool 1.820.084.000
