Alfa Romeo 155 Factory Service Manual (1992-1998)52 · Axle shafts
52 · General

Description

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Illustrated index › Description
Axle shaftsDescription · page 1 of 2

DESCRIPTION

The axle shafts, constant speed joints and the inter-

mediate shaft form the assembly of the devices which transmits the movement from the gearbox to the drive wheels.

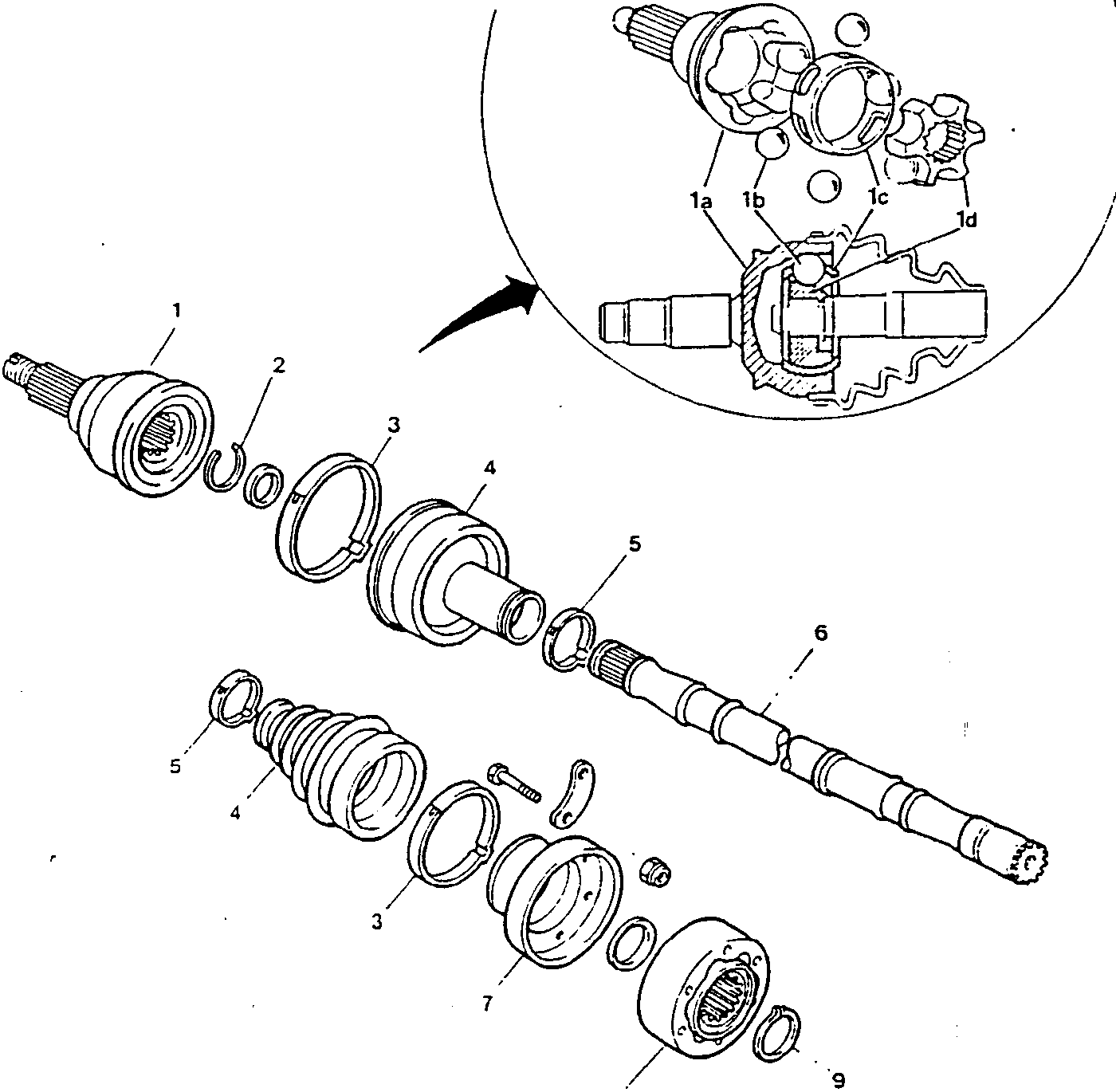

Exploded view of axle shaft assembly with numbered parts.
  1. Constant speed joint - wheel side
  2. Flexible ring
  3. Retaining clamp
  4. Cover
  5. Retaining clamp
  6. Axle shaft
  7. Constant speed joint attachment flange
  8. Constant speed joint - gearbox side
  9. Flexible ring
