BodyworkProtection · page 1 of 2
  1. Install the four blocks securing the front wing.
  2. Check parallelism, gaps and angles (this necessitates the installation of the mobile components which were previously removed along with the gaskets and parts which, when installed, will make it possible to check the success of the operations).
Illustration showing alignment check with two parallel lines

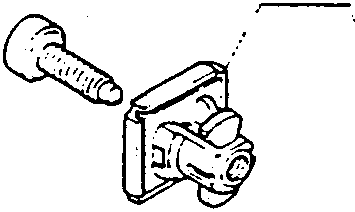

Close-up of a bolt securing a component

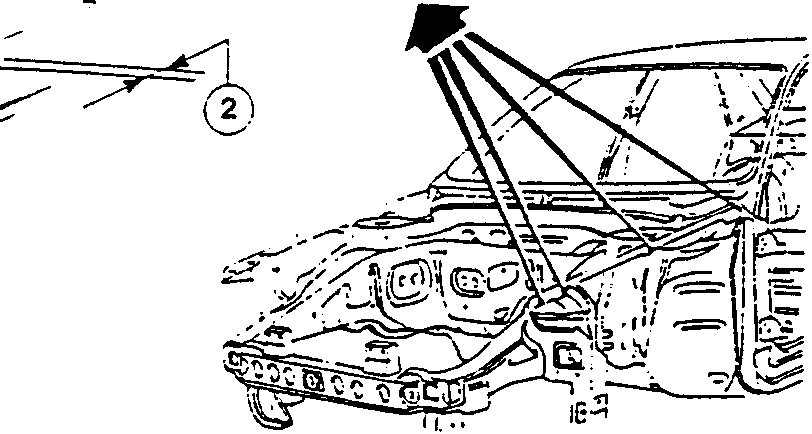

Diagram showing alignment check with multiple arrows pointing to different parts

Protection

  1. Spread Type A rust proofing on the areas indicated in the illustration.

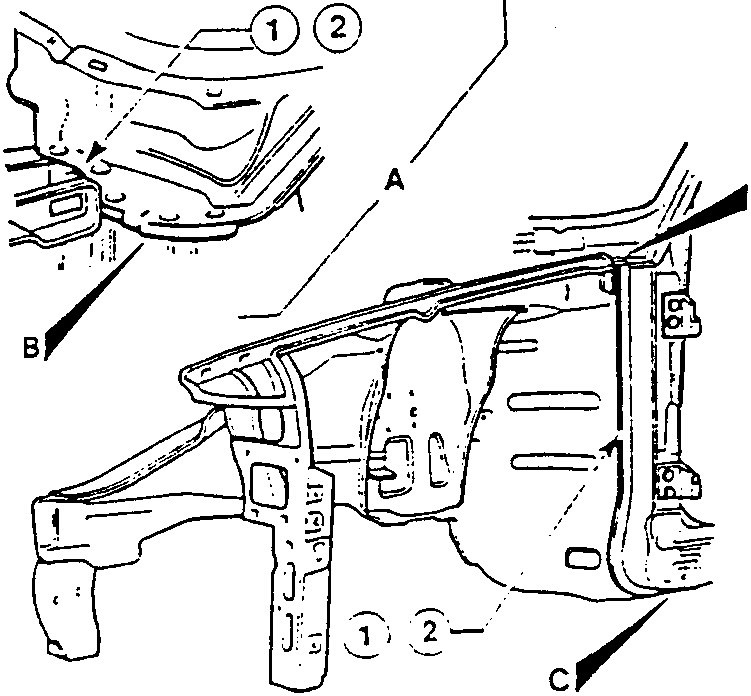

Illustration showing areas A, B, and C for rust proofing application

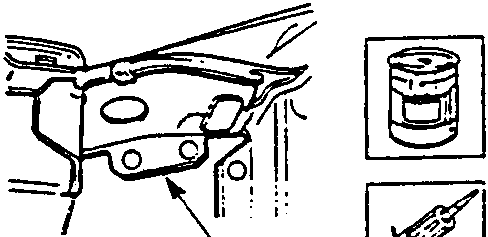

Close-up of a component with sealant application point
Tool for applying sealant

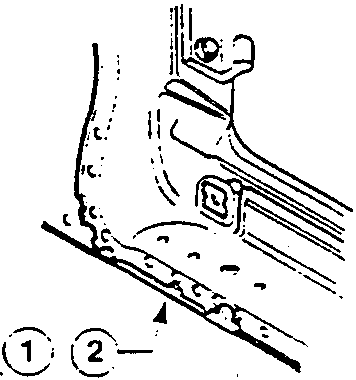

Illustration showing sealant application along a seam
  1. Apply Type A sealant to the areas indicated in the illustration.
