Alfa Romeo 155 Factory Service Manual (1992-1998)60 · Bodywork
60 · Body & interior

Protection (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Checks and Protection
BodyworkProtection · page 2 of 2
  1. Apply Type A rust-proofing to the areas indicated in the illustration.
  2. Apply Type A protection to the areas indicated in the illustration.

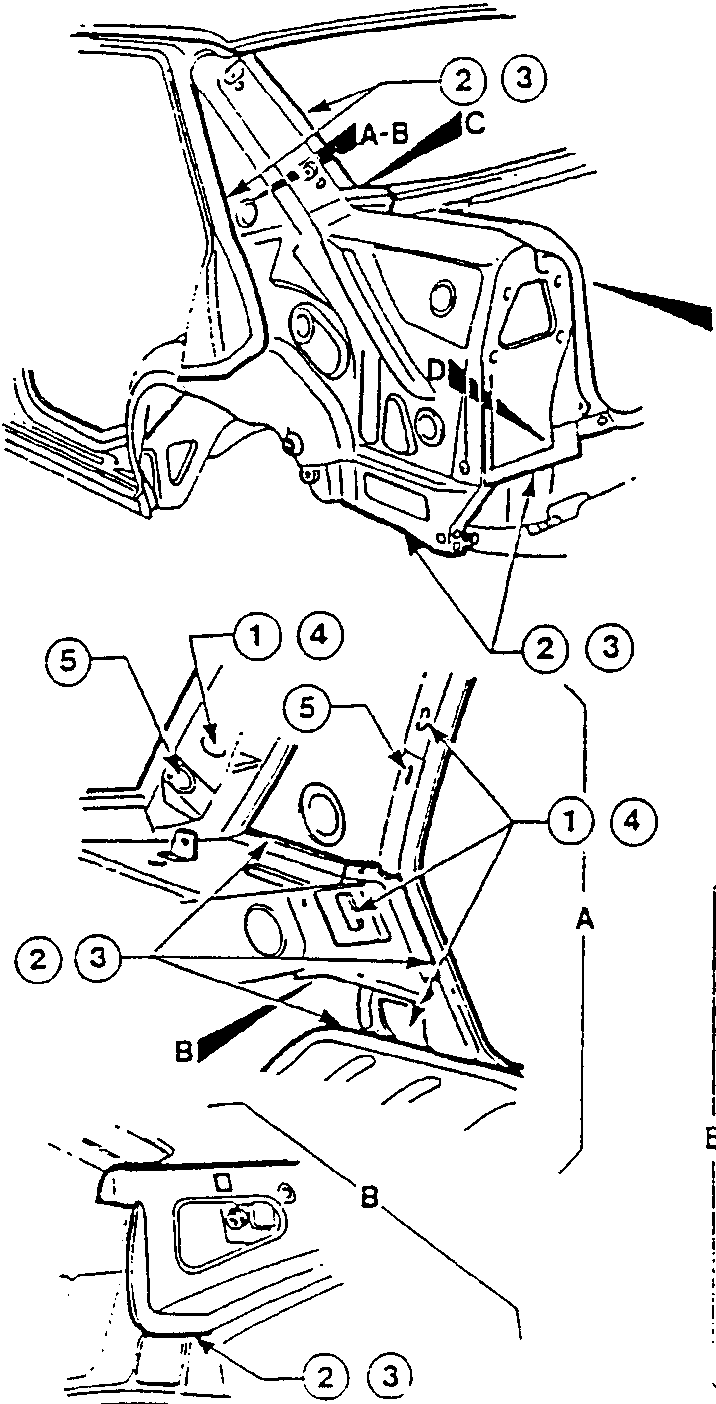

Diagram showing areas for rust-proofing and protection on a car body part, with callouts A-B, C, D, E, 1, 2, 3, 4, 5.
  1. Apply Type A sealant to the areas indicated in the illustration.
  2. Proceed to the painting phase.
  3. Proceed to the waxing phase.
  4. Proceed to the foam treatment phase

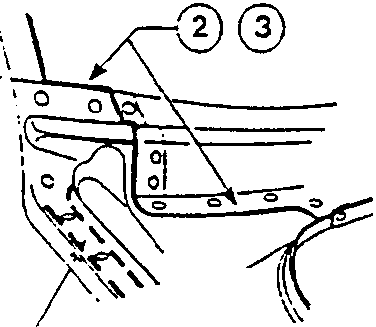

Close-up diagram showing application points for sealant on a car body joint, with callouts 2 and 3.

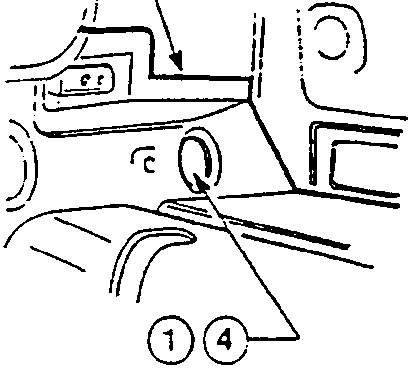

Diagram showing application points for sealant on a car door hinge area, with callouts 1 and 4.

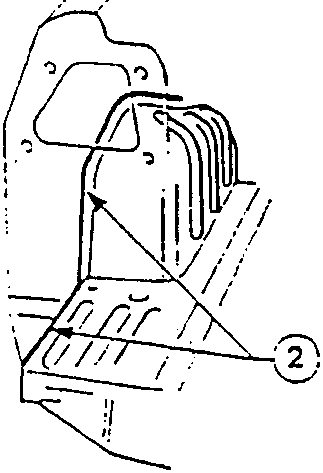

Diagram showing application points for sealant on a car body panel edge, with callouts 2 and 3.
